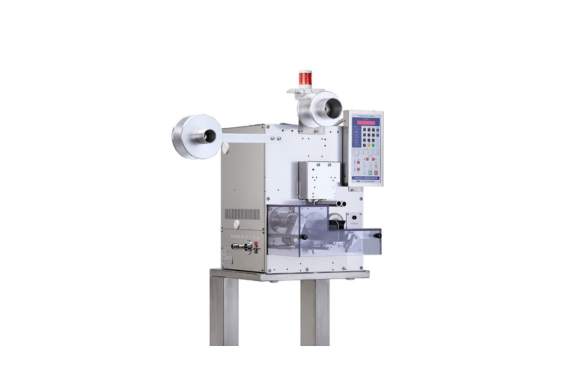

MITSUHASHI KD-920 Pouch Dispenser
Manufacturer: MITSUHASHI CORPORATION
Model: KD-920
This device cuts continuous pouches (small bags) into fixed lengths, one bag at a time (multiple bags can also be cut), and places them in designated locations on a conveyor line or similar.

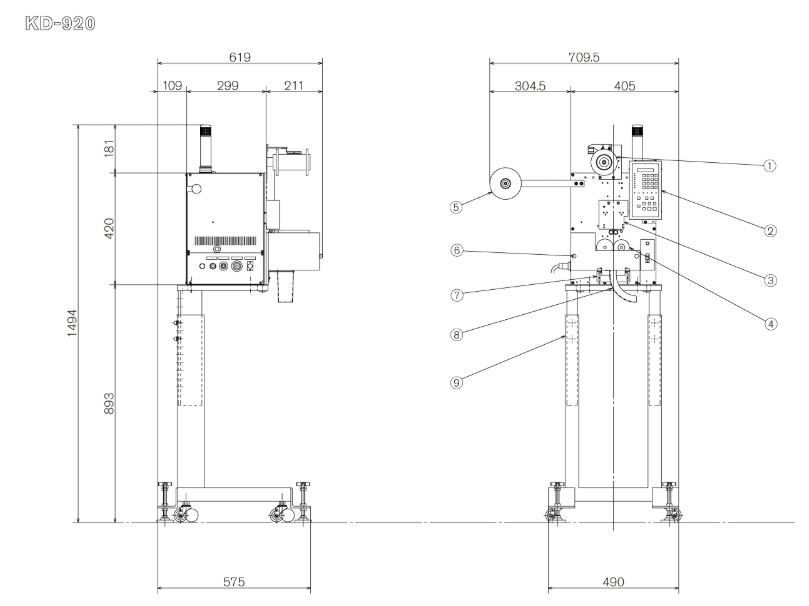

Drawing
① Top roll
② Control panel
③ Pitch detection unit
④ Quantitative feed unit
⑤ Roll unit
⑥ Cutter unit
⑦ Mis-cut prevention sensor
⑧ Chute
⑨ Frame

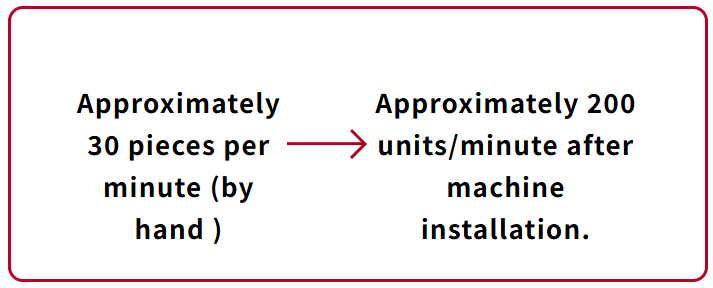

Labor-saving effect
Features
- Input capacity: 200 units/minute
- Low-cost type employing an electromagnetic solenoid-driven single-blade cutter unit.
- High-performance 32-bit microcontroller control
- A wide range of options are available, including a feed unit that enables the loading of heavy pouches and a vibrator unit that ensures accurate detection of the bag length of fine, light contents.
Specification
| Input capacity | 200 pouches/minute (maximum) <when bag length is 70mm> *Capacity decreases as the bag length pitch increases. *Maximum capacity also varies depending on the packaging material and contents. |
|---|---|
| Pouch packaging | Width: 20-100mm, Length: 30-150mm, Thickness: 10mm (maximum) |
| power supply | 1φ AC200V 50/60Hz 0.5kVA |
| mass | Approximately 45 kg |
