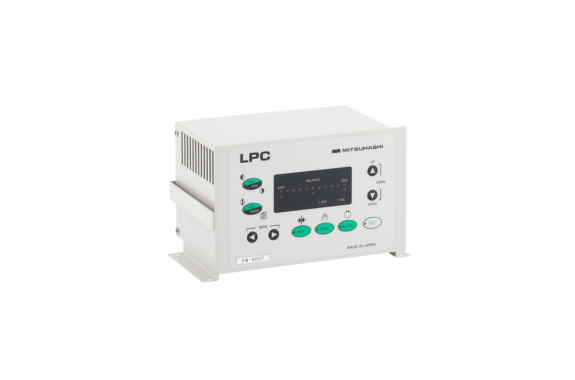

MITSUHASHI PW-800 Control Panel
Manufacturer: MITSUHASHI CORPORATION
Model: PW-800
This is a control panel for web meandering control. It has simple functions and is easy to operate. It can drive all roll guiders and small actuators, and sensors other than PS-800, PS-300, and PS-350 from the Q series can be connected.

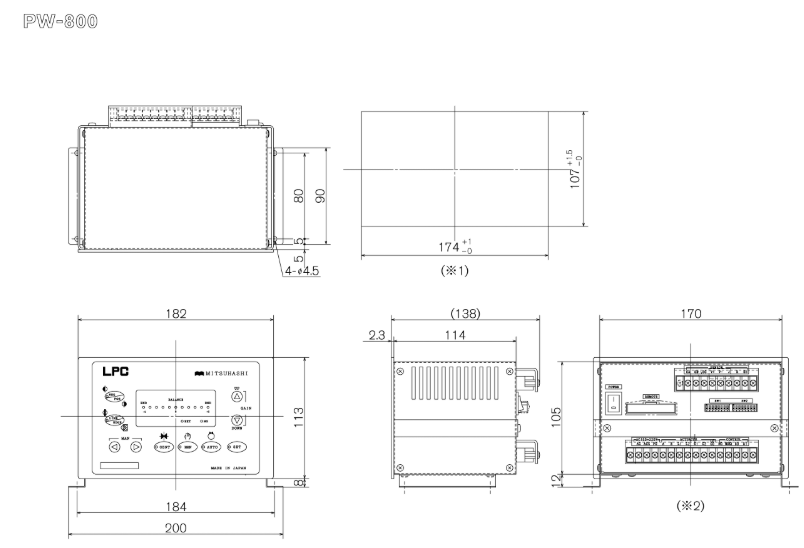

Drawing
*1: Panel cutout dimensions *2: Rear view
Features
- Compact control unit
Compared to our previous model (PW-1000), this product has been miniaturized to one-quarter of its original volume. - Easy operation
The reference position can be automatically set with a single SET switch. Sensitivity adjustment is also as simple as increasing or decreasing it with a switch. - Sheet key adopted
The sheet keys prevent dust from entering from the panel surface.
Specification
| power supply | Single-phase AC 100V to AC 200V, 50/60Hz |
|---|---|
| Power consumption | Max 80VA |
| mass | Approximately 1.8 kg |
| Usage environment | 0-40°C (no condensation) |
| Detector input | 1 system |
| Adaptive detector | PW-800R: PS-261, PS-270, PS-1100 PW-800T: PS-711 PW-800U: PS-400, PS-45 |
| Adaptive driver | • PD series: PD-400, PD-400-75, PD-400-1/50, PD-710, PD-610, PD-620 , PD-620-100, PD-650 , PD-650S • All PG series • All MR series |
