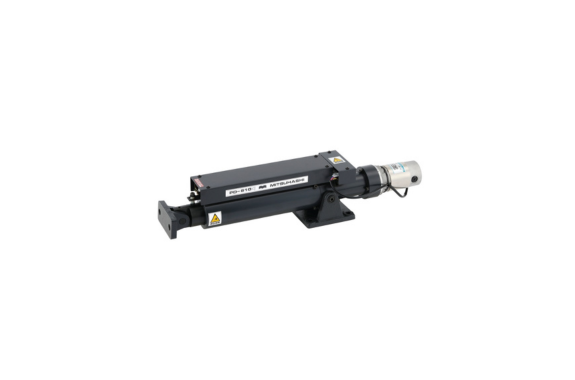

MITSUHASHI PD-610 Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PD-610
This actuator is used to control the meandering of the web unwinding and winding sections. It is used in combination with the Q-series control panel and detector. It is for use with equipment weighing 1600 kg or less.

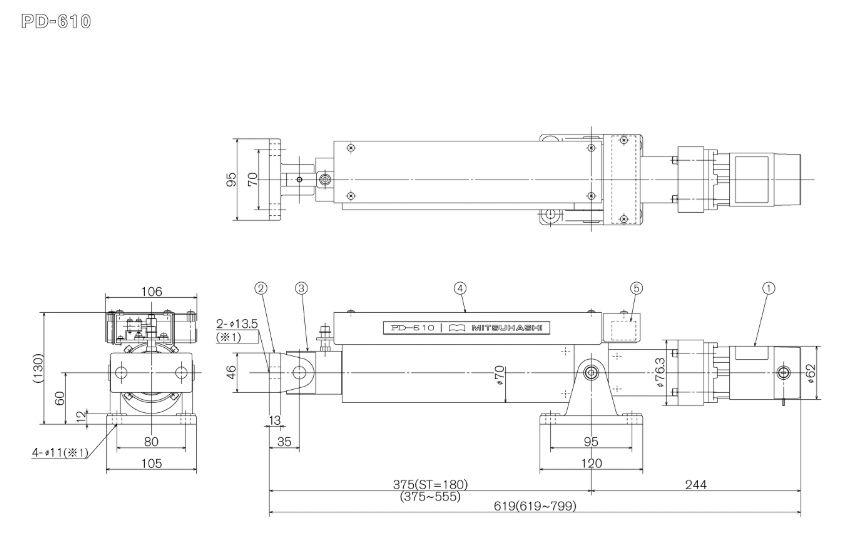

Drawing
① DC geared motor
② Connector
③ Slide rod
④ Switch unit
⑤ Terminal block *1: Mounting holes
Features
- Long lifespan and easy maintenance and inspection.
Because it uses a ball screw in the drive mechanism, there are virtually no wear parts, resulting in a long lifespan and easy maintenance. - Equipped with a microswitch for center position detection.
By pressing the center stop switch on the control panel, you can pre-set the actuator to the center position.
Specification
| Allowable thrust | 490N (50kgf) |
|---|---|
| Allowable mass | 1660kg |
| stroke | 180mm |
| Drive speed | 16mm/s |
| DC motor | DC24V 1.5A |
| mass | 11kg |
