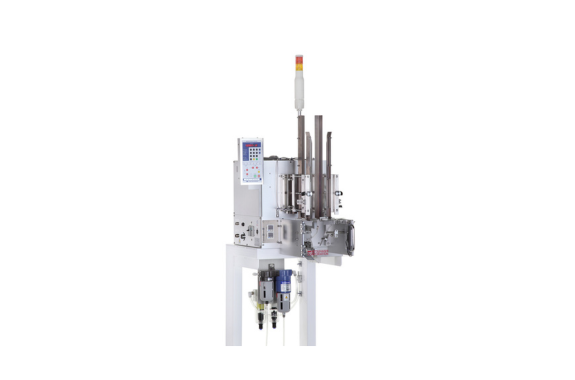

MITSUHASHI CD-920 Rotary Card Dispenser
Manufacturer: MITSUHASHI CORPORATION
Model: CD-920
This device loads various types of cards, backings, trays, and lids into designated positions on a conveyor line.
Our unique cam rack mechanism ensures stable movement and smooth, card-friendly operation.

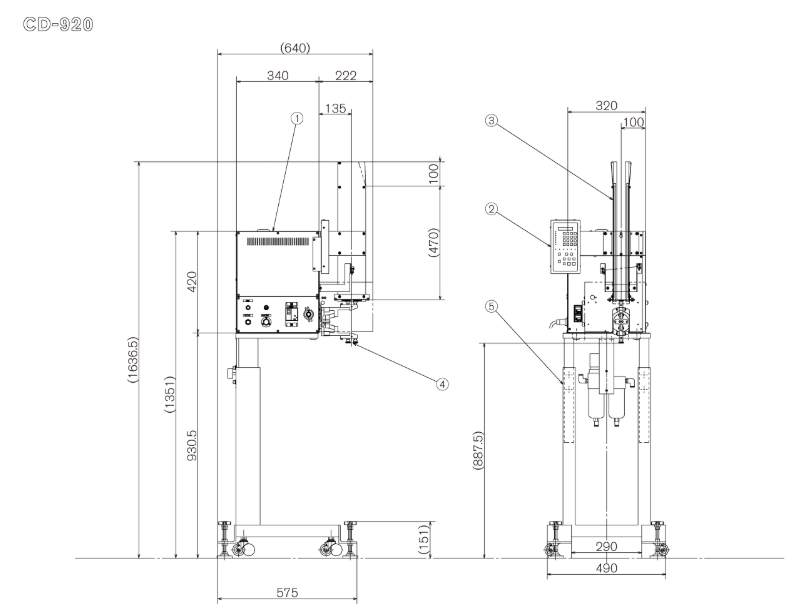

Drawing
① CD-920
② Control panel
③ Fixed storage unit
④ Suction arm
⑤ Frame

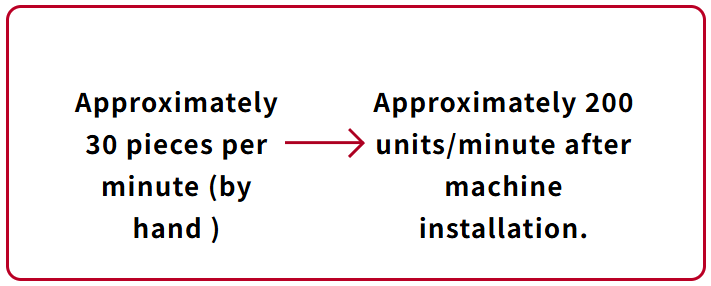

Labor-saving effect
Features
- Device capacity: 200 units/minute
- It can be automatically dispensed by synchronizing it with input signals from packaging machines and other devices.
- It features our proprietary cam rack mechanism. Furthermore, the suction arm employs a rotary twin-arm design, resulting in faster speeds, more stable movement trajectories, and smoother, pouch-friendly operation.
Specification
| Equipment capacity | 200 pieces/minute (maximum) *Maximum capacity may vary depending on the shape, hardness, and other specifications of the product. |
|---|---|
| Work specifications | Width 30-70mm, Length 30-100mm |
| power supply | 3φ AC200/220V 50/60Hz 1.0kVA |
| mass | Approximately 40 kg |
| Air source | 0.5 MPa 210 L/min (ANR) Dry Air |
