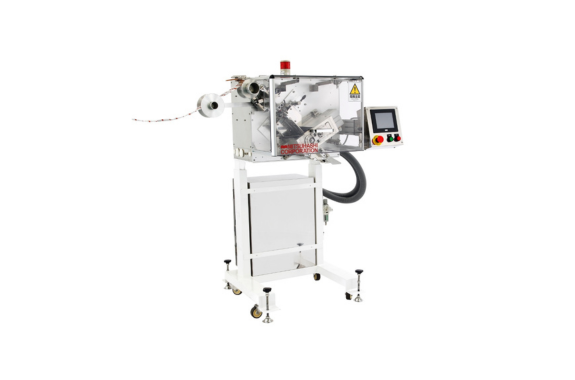

MITSUHASHI KD-4010 Rotary Pouch Dispenser
Manufacturer: MITSUHASHI CORPORATION
Model: KD-4010
This device uses a high-speed rotary cutter to cut continuous pouches (small bags) one by one (or multiple bags at a time) and automatically feeds them into the packaging machine’s conveyor belt, keeping pace with its speed. It is a state-of-the-art high-speed feeder, achieved through the development of a rotary cutter and feed synchronized with the packaging machine’s conveyor belt timing.

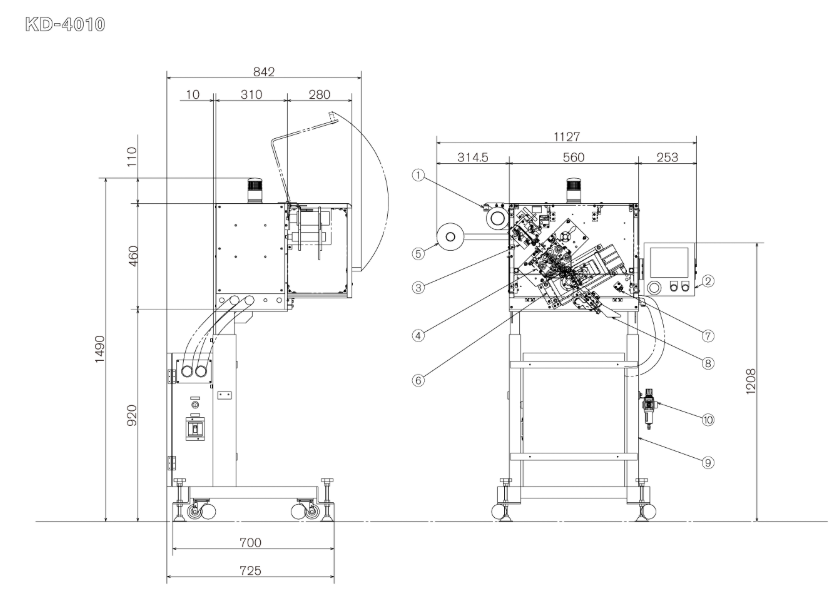

Drawing
① Top roll
② Control panel
③ Pitch detection unit
④ Quantitative feed unit
⑤ Roll unit
⑥ Rotary cutter unit
⑦ Mis-cut prevention sensor
⑧ Belt-type chute
⑨ Frame

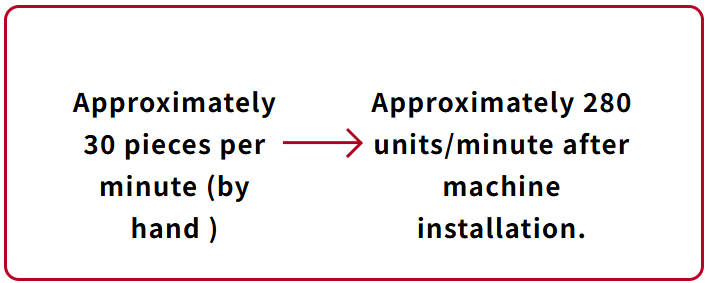

Labor-saving effect
Features
- Input capacity: 280 units/minute
- By matching the rotation speed of the cutter blade with the pouch feeding speed when cutting the pouch, continuous feeding is achieved. Even at high speeds, it operates smoothly and is gentle on the pouch.
- Smooth, high-speed cutting with a rotary cutter
- It features an easy-to-view 5.7-inch color touch panel for simple operation.
- Up to 30 varieties of pouches can be registered.
Specification
| Input capacity | 280 pieces/minute *Capacity decreases as the bag length interval increases. *Maximum capacity also varies depending on the packaging material and contents. |
|---|---|
| Pouch packaging | Width 50-100mm, Length 50-120mm, Thickness 10mm (maximum) |
| power supply | 3φ AC200/220V 50/60Hz 3kVA |
| mass | Approximately 210kg |
| Air source | 0.5 MPa 3 L/min (ANR) Dry Air |
