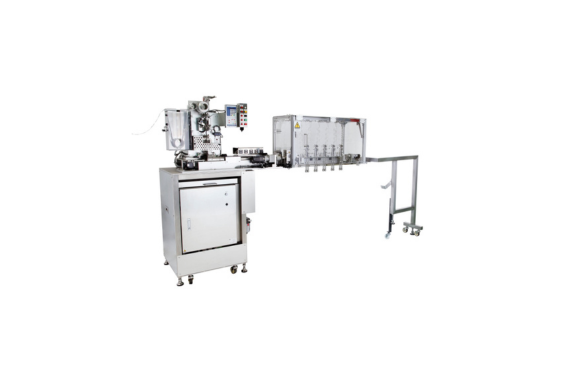

MITSUHASHI SMV Series Multi-Row Distribution Device
Manufacturer: MITSUHASHI CORPORATION
Model: SMV Series
This is a multi-row dispensing device that simultaneously dispenses pouches filled with powders or liquids such as soups and condiments into a container that is transported with multiple pouches side-by-side, after they have been cut and placed at regular intervals. It is used in combination with a pouch dispenser.
Patent registration number: Patent No. 4099189

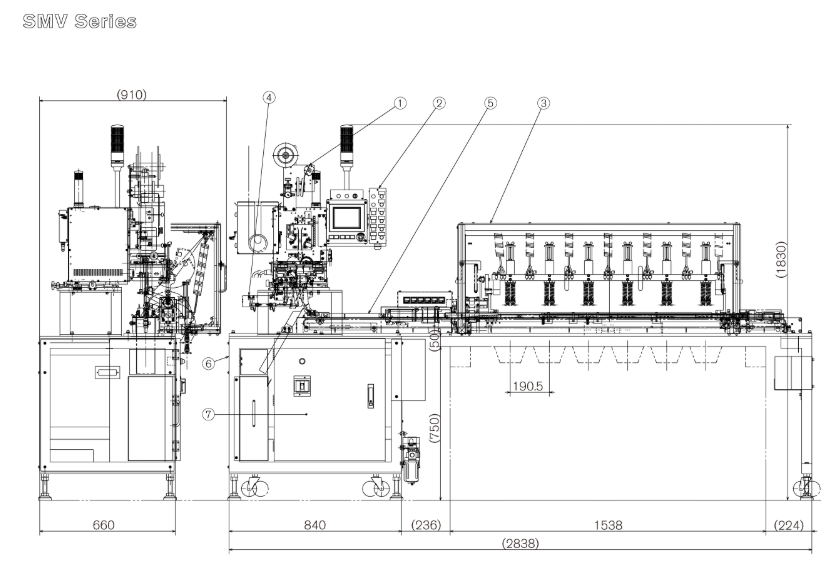

Drawing
① KD-820
② Control panel
③ Suction & feeding unit
④ Automatic discharge chute (optional)
⑤ Conveyor unit
⑥ Frame
⑦ Control unit
Features
- This space-saving design allows a single pouch dispenser to handle the task of dispensing multiple pouches into a container placed side-by-side.
- By using our standard pouch dispenser, we can accommodate a wide range of standard options.
- Using two pouch dispensers allows for simultaneous dispensing of two different product varieties and backup operation.
- Because the pouch is handled while still being held in place, it can be accurately dispensed to the desired location.
Specification
| Input capacity | 30 shots/minute (maximum) <when distributed to 4 rows> *1 25 shots/minute (maximum) <when distributed to 6 rows> *1 |
|---|---|
| Pouch packaging | Width 100mm (maximum), Length 150mm (maximum), Thickness 30mm (maximum) |
| power supply | 3φ AC200V 50/60Hz 3kVA *2 |
| mass | Approximately 200 kg (including pouch dispenser: approximately 30 kg) *2 |
| Air source | 0.5 MPa, approximately 400 L/min (ANR) dry air *2 |
*1 The input capacity is determined by the pouch dimensions, input container (cup) pitch, number of input rows, etc. Please contact us for details.
*2 Varies depending on the options installed.
