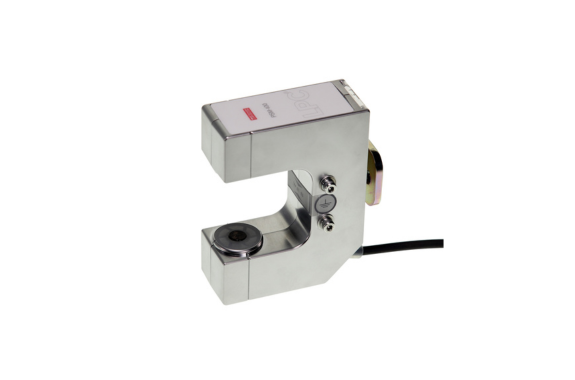

MITSUHASHI PSM-400 Ultrasonic Edge Sensor
Manufacturer: MITSUHASHI CORPORATION
Model: PSM-400
This is an ultrasonic transmission type web edge sensor. It is used in combination with G-series controllers and drive units for controlling web meandering. Because it is not affected by the transparency, color, or pattern of the web, it is suitable for edge detection of transparent objects.

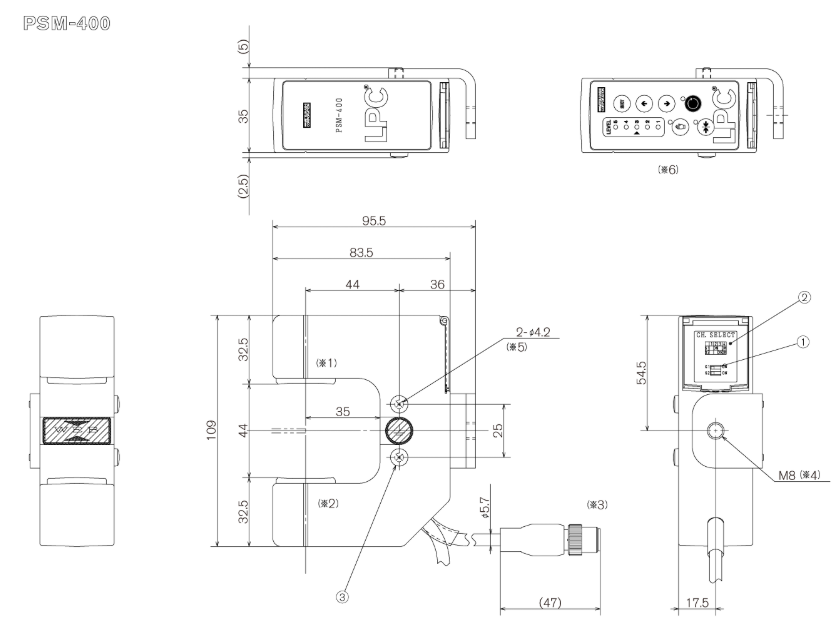

Drawing
① Channel selection switch
② Transparent cover
③ Grounding terminal (M4) *1: Receiving side *2: Transmitting side *3: Cable length 300mm *4: Mounting hole, depth 10mm *5: Mounting hole when not using the included bracket *6: Diagram with switch panel
Features
- Because the web edge position is detected by changes in the amount of ultrasonic waves transmitted, it can be accurately detected without being affected by color, pattern, or transparency.
- The “400S” with a switch panel is convenient because mode switching and teaching operations can be performed directly on the sensor unit. Furthermore, the switch panel version allows for a simpler system (driver and sensor only) without the need for a PEM-type controller.
Specification
| power supply | DC24V±10% (supplied via CAN bus) |
|---|---|
| Current consumption | 35mA (at DC24V power supply) |
| Usage environment | Temperature: 0–40°C; Humidity: 80% Rh or less (non-condensing) |
| mass | Approximately 220g |
| Detection target | Web edge |
| Detection range | 5.0mm |
| Detection method | Ultrasound (frequency 300kHz) |
Lineup
| Model | Purpose |
|---|---|
| PSM-400 | No switch panel |
| PSM-400S | With switch panel |
