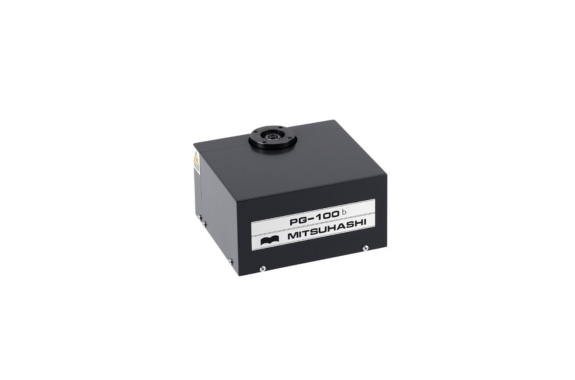

MITSUHASHI PG-100 Small Roll Guide
Manufacturer: MITSUHASHI CORPORATION
Model: PG-100
This is a general-purpose offset roll guide used for meandering control in the intermediate stages of web transport.

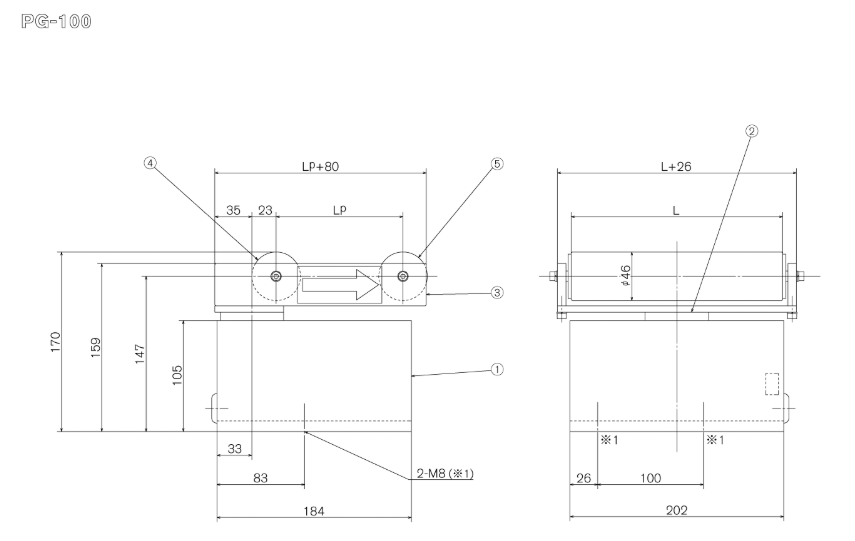

Drawing
① Drive unit
② Pivot stand
③ Roll frame
④ Inlet side roll
⑤ Outlet side roll
L: Roll face length Lp: Roll span
*1: Mounting tap
Features
- It is ideal for position control during the sheet processing line.
- Ideal for materials prone to permanent deformation or tearing.
The roll guide controls the web by twisting it at both the inlet and outlet ends. This minimizes the tension difference between the two edges of the web, making it suitable for controlling webs made of materials prone to permanent deformation or tearing.
Specification
| DC motor | DC24V 0.4A |
|---|---|
| correction speed | 16 mm/s (when roll span is 200 mm) |
| Controlled quantity | ±13mm (when roll span is 200mm) |
| Maximum seat speed | 100 mm/min |
| Roll surface length | 100-300mm |
| Roll diameter | φ46 (standard) |
| Rollspan | 50-200mm |
