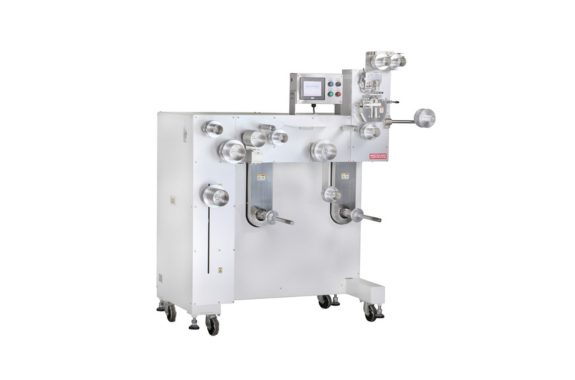

MITSUHASHI FW-2000 Pouch Winder
Manufacturer: MITSUHASHI CORPORATION
Model: FW-2000
This device connects to various three-side and four-side sealing filling and packaging machines, and winds up continuous pouches (small bags) in fixed quantities.

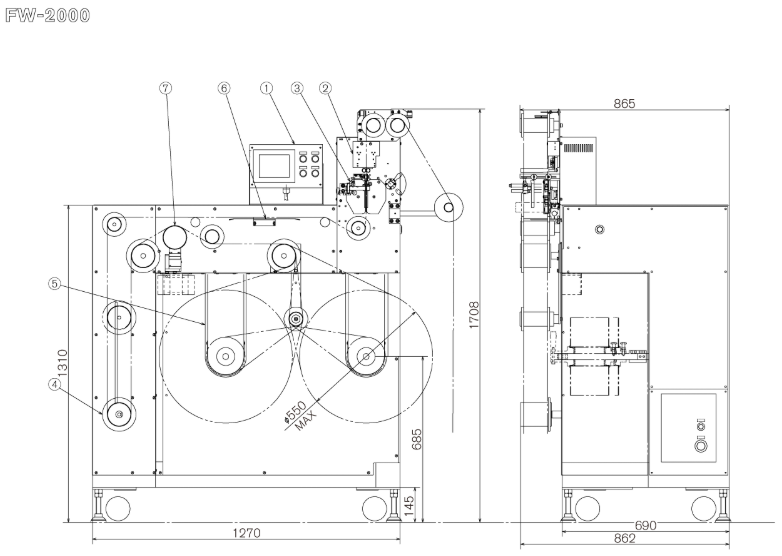

Drawing
① Control panel
② Pitch detection unit
③ Quantitative feed unit
④ Dancer roll section
⑤ Winding section
⑥ Work table
⑦ Tension roll
Labor-saving effect
Features
- Equipment capacity 70m/min
- A belt-type feed unit is used for conveying pouches. This allows for stable feeding without being affected by the packaging material or tension.
- It can be wound up with low tension.
- By using our AIREX product for the winding shaft, the core can be attached and detached with a single touch. (Optional)
- Equipped with two winding shafts, this system reduces downtime due to reel changes, thereby improving productivity.
Specification
| Winding capacity | 70 m/min (maximum) *Maximum capacity may vary depending on the packaging material and contents. |
|---|---|
| Winding direction | Left-hand/right-hand reel switchable |
| Pouch packaging | Width: 20mm to 100mm, Length: 20mm to 90mm |
| Winding diameter | φ75～φ550mm |
| Winding width range | 20-330mm |
| Paper tube inner diameter | φ35mm or larger |
| tension | 1 to 20 [N] |
| power supply | 3-phase AC200V 50/60Hz 1.5kVA |
