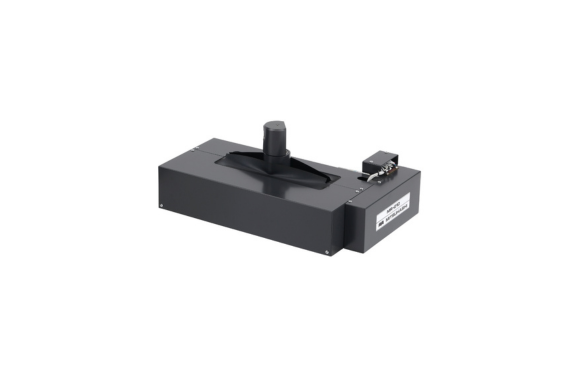

MITSUHASHI MR-210 End-Pivot Type Large Roll Guide
Manufacturer: MITSUHASHI CORPORATION
Model: MR-210
This is an end-pivot type roll guide used for meandering control in the intermediate stages of web transport.

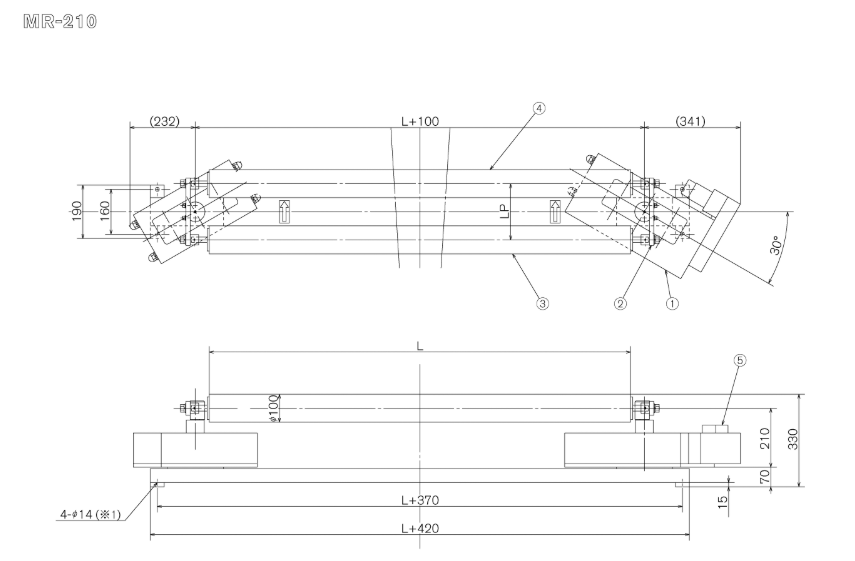

Drawing
① Drive unit
② Roll frame
③ Inlet roll
④ Outlet roll
⑤ Switch unit
L: Roll face length Lp: Roll span
*1: Mounting hole
Features
- It is ideal for position control during the sheet processing line.
- Ideal for stretchable materials
If the web deviates from the detection reference position, it moves laterally and rotates in an arc to correct itself to the detection reference position. Therefore, it is suitable for lines where there is sufficient space between the rollers installed before and after the roll guide. In addition, the web material is suitable for materials that have elasticity to absorb tension differences, such as vinyl, polypropylene, woven fabric, and tire coating.
Specification
| DC motor | DC24V 2A |
|---|---|
| correction speed | 10mm/s |
| Controlled quantity | ±85mm |
| Maximum seat speed | 200m/min |
| Sheet tension | 980N (100kgf) |
| Roll surface length | 440-2500mm |
| Roll diameter | φ100 (standard) |
| Rollspan | 150-400mm |
