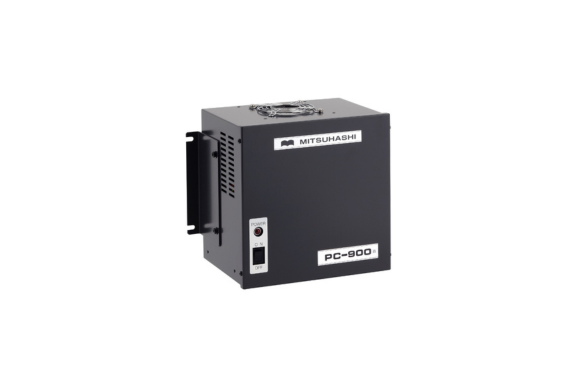

MITSUHASHI PC-900 DC Motor Driver
Manufacturer: MITSUHASHI CORPORATION
Model: PC-900
This is a DC motor driver designed for use with the PE-700 preamplifier. It drives small actuators.

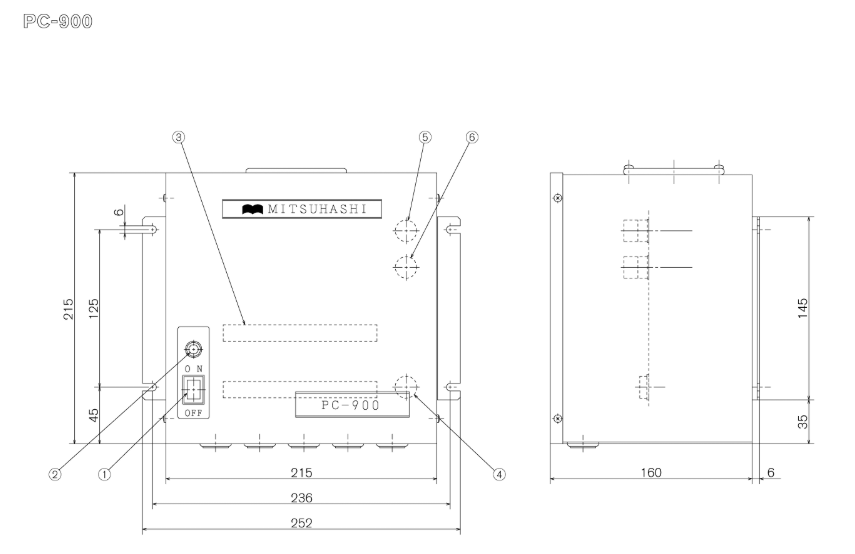

Drawing
① Power switch
② Power indicator light
③ External connection terminal board
④ Control panel connection connector
⑤ Power fuse
⑥ Motor fuse
Features
- Equipped with two operating modes
There are two modes: one that uses an ON/OFF input and another that controls the speed proportionally to the input voltage.
When controlling the speed proportionally to the input voltage, connect the PE-700 driver and the detector.
Specification
| Control method | DC servo Transistor drive system |
|---|---|
| power supply | Single-phase 200/220V 50/60Hz 1A |
| Control response | Electrical response within 0.01 seconds |
| input | PE type preamplifier |
| output | DC24V 2A |
| Humidity temperature | 0-50°C (no condensation) |
| alarm contact | AC110V 0.3A, DC24V 1A (resistive load) |
| mass | 8kg |
