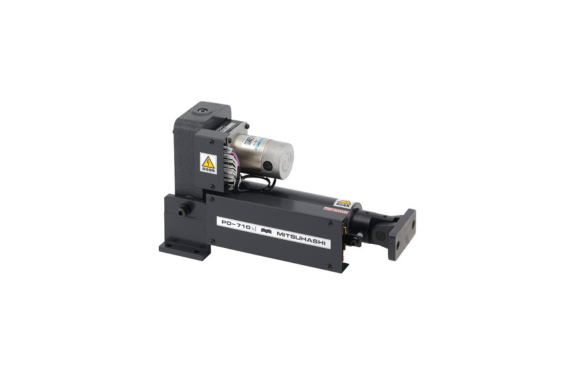

MITSUHASHI PD-710 Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PD-710
This actuator is used to control the meandering of the web unwinding and winding sections. It is used in combination with the Q-series control panel and detector. Compared to the PD-610, it has a shorter overall length, making it suitable for installation in small spaces.
Drawing

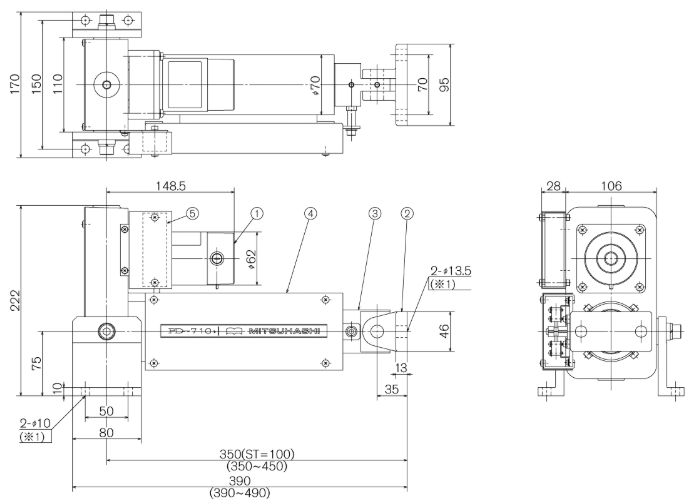

PD-710 (Vertical Type)
① DC geared motor
② Connector
③ Slide rod
④ Switch unit
⑤ Terminal block
*1: Mounting holes

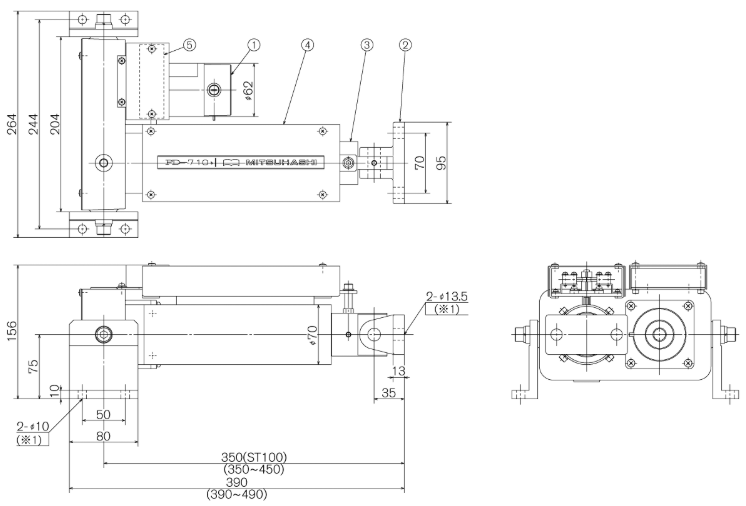

PD-710 (Horizontal Type)
① DC geared motor x
② Connector
③ Slide rod
④ Switch unit
⑤ Terminal block
*1: Mounting holes
Features
- Long lifespan and easy maintenance and inspection.
Because it uses a ball screw in the drive mechanism, there are virtually no wear parts, resulting in a long lifespan and easy maintenance. - Equipped with a microswitch for center position detection.
By pressing the center stop switch on the control panel, you can pre-set the actuator to the center position.
Specification
| Allowable thrust | 412N (42kgf) |
|---|---|
| Allowable mass | 1400kg |
| stroke | 100mm |
| Drive speed | 13mm/s |
| DC motor | DC24V 1.2A |
| mass | 12kg |
