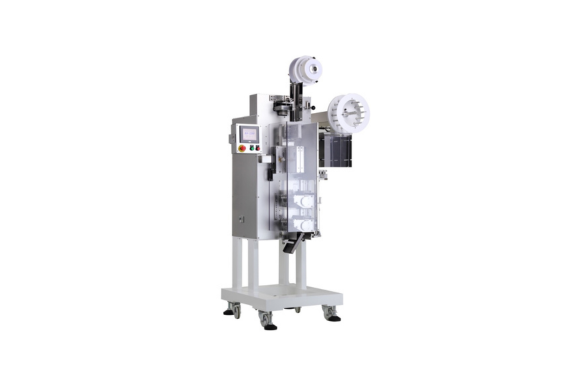

MITSUHASHI KS-2200 Rotary Pouch Cutter
Manufacturer: MITSUHASHI CORPORATION
Model: KS-2200
This device uses a high-speed rotary cutter to cut each individual pouch (or multiple pouches at once) by making a notch.

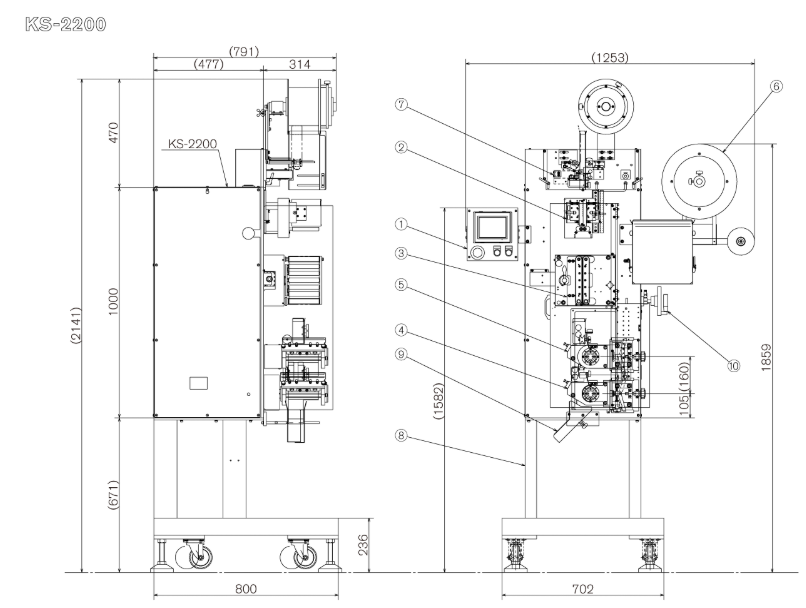

Drawing
① Control panel
② Pitch detection unit
③ Quantitative feed unit
④ Cutter unit
⑤ Perforation unit
⑥ Feeding unit
⑦ Notch unit
⑧ Frame
⑨ Chute
⑩ Perforation unit lifting handle

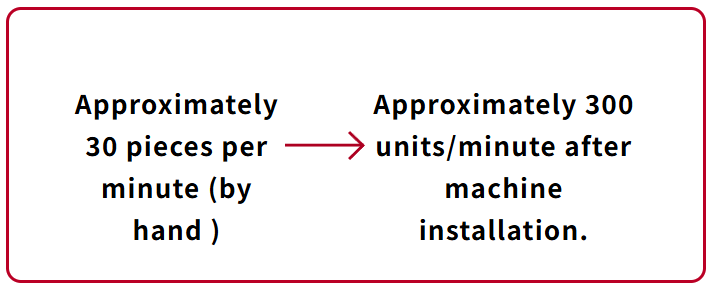

Labor-saving effect
Features
- Device capacity: 300 units/minute
- It can cut, perforate, and notch pouches.
- By matching the rotation speed of the cutter blade with the pouch feeding speed when cutting the pouch, continuous feeding is achieved. Even at high speeds, it operates smoothly and is gentle on the pouch.
- The adoption of a sliding unit has improved the accuracy of cutting and perforating.
- The cutter unit and perforation unit have an angle adjustment function to correct diagonal cuts.
- The notch position and depth can be adjusted during operation. It is also possible to create diagonal notches to facilitate corner cutting.
Specification
| Equipment capacity | 30 m/min (maximum) <when bag length is 100 mm (single package)> 300 pieces/min (maximum) *Maximum capacity may vary depending on the packaging material and contents. |
|---|---|
| Pouch dimensions | Width: 65-120mm, Length: 45-180mm, Thickness: 20mm (maximum) |
| External dimensions | 1780mm(W)×2136mm(H)×800mm(D) |
| power supply | 3-phase AC200V 50/60Hz 2.5kVA |
| mass | Approximately 210kg |
