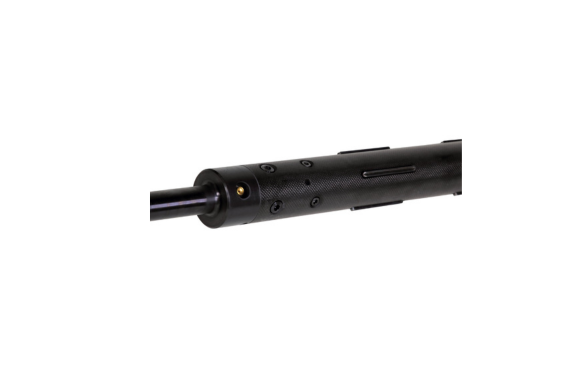

MITSUHASHI AIREX Air Shaft Carbon Type

Manufacturer: MITSUHASHI CORPORATION

When air is injected, numerous lugs (claws) protrude from inside the shaft, allowing it to clamp the core.

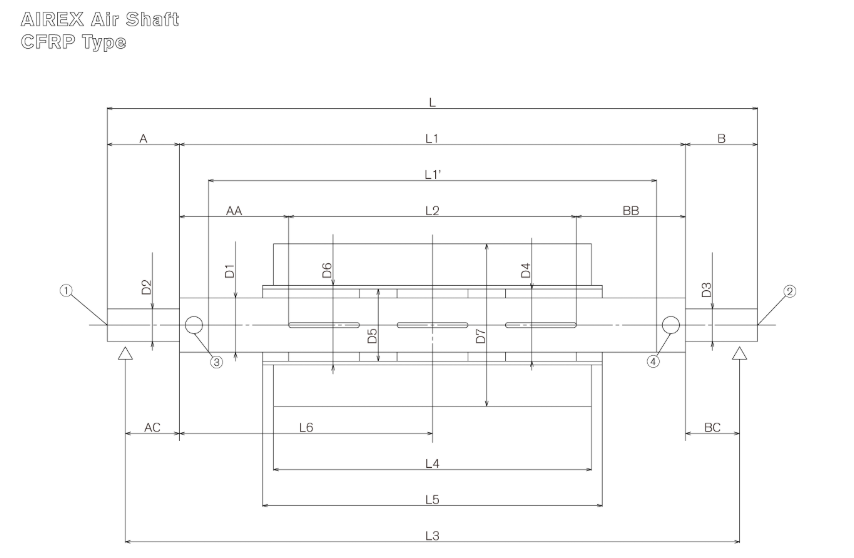

Drawing

① Air inlet (a)
② Air inlet (b)
③ Air inlet (c)
④ Air inlet (d)
A: Shaft length AA: Body end to lug AC: Bearing to body B: Shaft length BB: Body end to lug BC: Bearing to body
D1: Body outer diameter D2: Bearing section diameter D3: Bearing section diameter D4: Lug tension diameter D5: Core inner diameter D6: Core outer diameter D7: Raw material winding diameter
L: Total length L1: Body section length L1′: Body pipe (CFRP section) length L2: Lug to lug L3: Bearing distance L4: Raw material width L5: Core width L6: Body end to sheet center

Features

Lightweight
By replacing the steel shaft body with carbon fiber reinforced polymer (CFRP), it is possible to reduce the weight to approximately half of the original mass. *This comparison is for the main body only, excluding the shaft end.
cf. Specific gravity comparison: Steel (7.86), Aluminum alloy (2.8), Carbon (1.6).
High strength and minimal deflection
Using aluminum alloy for the shaft body to reduce weight significantly reduces strength and increases deflection compared to steel, making it unsuitable for high load applications. In the case of carbon fiber reinforced polymer (CFRP), the reduction in strength is minimal, and the increase in deflection is also minimal, making it suitable for high load applications similar to steel.
Low inertia and eco-friendly
The GD² (inertia) of a carbon fiber reinforced polymer (CFRP) shaft is approximately half that of an aluminum alloy shaft and about one-fifth that of a steel shaft. This means that the energy consumption for rotational motion is reduced, making it an eco-friendly air shaft that is in line with modern standards.
Beautiful exterior
The outer circumference of the carbon pipe features a beautiful checkered cross-wrap finish. Furthermore, CFRP (carbon fiber reinforced polymer) has high corrosion resistance and will not rust.

Specification

	3in	6in
Shaft material	CFRP (GR40)
Main pipe length	500mm to 2800mm
Main body outer diameter	φ73.5mm～φ80mm	φ148.5mm～φ160mm
Applicable core inner diameter	φ74mm～φ87mm	φ150mm～φ162mm
Applicable core material	Paper tubes and resin cores
Operating air pressure	0.4 MPa to 0.7 MPa
Support method	Cantilever Type Double-sided Type
Rag format	Parallel lug type, Staggered lug type
