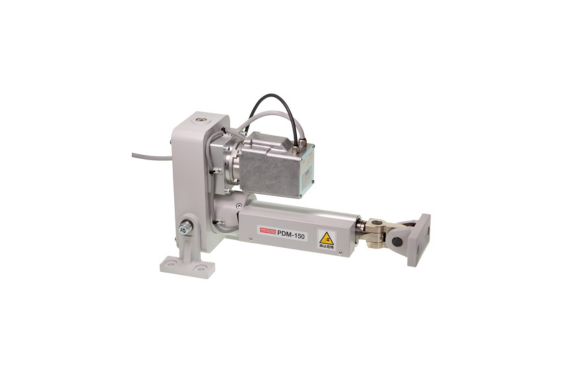

MITSUHASHI PDM-150 Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PDM-150
This actuator is used for controlling the meandering of the web unwinding and winding sections. It is used in combination with G-series controllers and sensors. Equipped with a brushless motor, it offers excellent maintainability and achieves high response and high-precision control. The permissible load is 1500 kg.

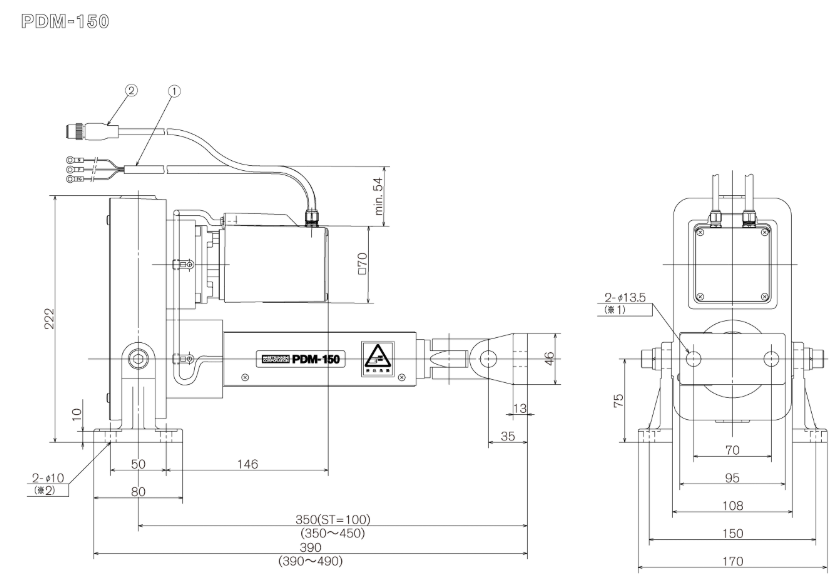

Drawing
① Power cable (5m)
② CAN cable (0.3m) *1: Mounting hole *2: Mounting hole
Features
- We have adopted a maintenance-free brushless DC motor.
- Compared to the conventional PD series, this new model enables more agile and precise meandering correction control.
- Since it connects to PEM-type controllers and PSM-type sensors using only connectors, wiring work is easy.
Specification
| thrust | 1700N |
|---|---|
| Allowable mass | 1500kg |
| stroke | 100mm |
| Drive speed | 20mm/s |
| mass | 10kg |
| power supply | DC24V±10% |
| Current consumption | 2.5A |
| Usage environment | Temperature: 0 to 40°C; Humidity: 80% Rh or less (non-condensing) |
