MITSUHASHI PDS-610 AC Servo Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PDS-610
This actuator is used for controlling the meandering of the web unwinding and winding sections. It is used in combination with the PW-1000 and PCS-1000. It is used for materials such as rolls and trolleys with a total weight of 1500 kg or less. Equipped with an AC servo motor, it enables high-precision control.

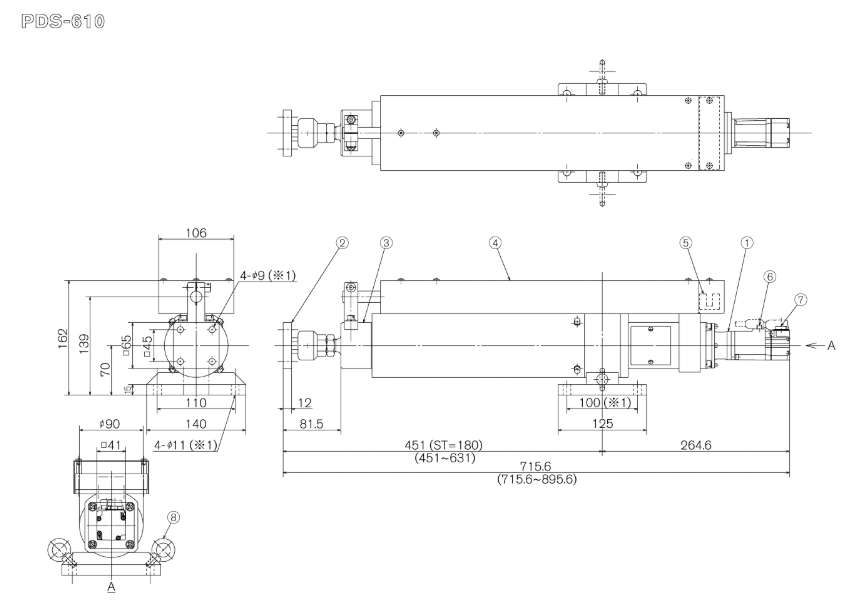

Drawing
① AC servo motor
② Floating joint
③ Slide rod
④ Switch unit
⑤ Terminal block
⑥ Power connector
⑦ Encoder connector
⑧ Eye bolt M8
*1: Mounting hole
Features
- High speed and high responsiveness
AC servo motors do not require magnets in the rotor, resulting in low rotor inertia and superior power rate, thus exhibiting high responsiveness and enabling high-precision control. - Maintenance-free thanks to brushless technology
It requires no maintenance or inspection as there is no wear on brushes or other parts. It can also be used in cleanrooms. - Enhanced protection features
The servo amplifier is equipped with numerous protection functions to protect it. These protection functions include overcurrent protection, overload protection, and motor overheating protection.
Specification
| Allowable thrust | 490N |
|---|---|
| stroke | 100mm |
| Drive speed | 50mm/s |
| AC servo motor | 100W |
| mass | 18kg |
