MITSUHASHI CORPORATION

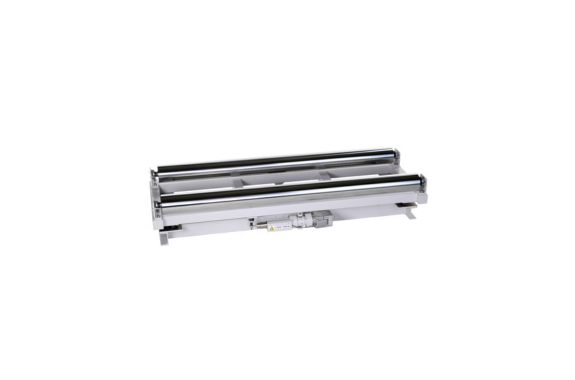

MITSUHASHI PGM-80 Large Roll Guide
Manufacturer: MITSUHASHI CORPORATION
Model: PGM-80
This is an offset roll guide used for meandering control in the intermediate stages of web transport. It is applicable to webs with a width of 3000 mm or less. Equipped with a brushless motor, it offers excellent maintainability and achieves high responsiveness and high-precision control.

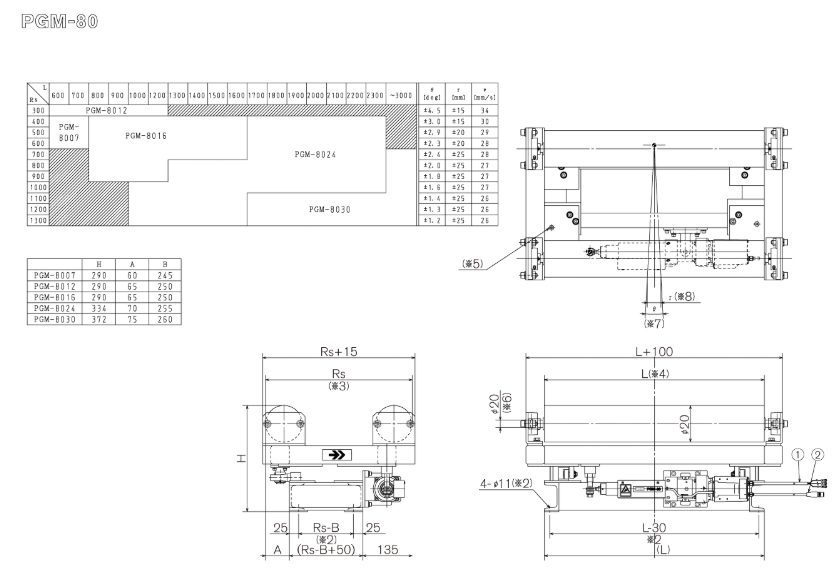

Drawing
① Power cable (5m)
② CAN cable (0.3m) *1: Mounting hole. Use the included angled washer during installation. *2: Mounting pitch *3: Roll span *4: Roll face length *5: Two fixing bolts for transport (remove after installation) *6: Roll shaft diameter *7: Swing angle [deg] *8: Maximum correction amount [mm]
Features
- We have adopted a maintenance-free brushless DC motor.
- Compared to the conventional PD series, this new model enables more agile and precise meandering correction control.
- Since it connects to PEM-type controllers and PSM-type sensors using only connectors, wiring work is easy.
Specification
| Roll surface length | 400-3000mm |
|---|---|
| b | 400-1300mm |
| Roll diameter | φ100 (standard). Other sizes are also available. |
| Roll material | Aluminum, steel, rubber, CFRP, etc. |
| Maximum web tension | 1200N |
| Maximum correction amount | ±15 to ±25 mm (depending on the roll span) |
| Drive speed | 26–34 mm/s (depending on roll span) |
| power supply | DC24V±10% |
| Current consumption | 2.5A |
| Usage environment | Temperature: 0–40°C; Humidity: 80% Rh or less (non-condensing) |
