Mizumoto Machine Mfg. Co.

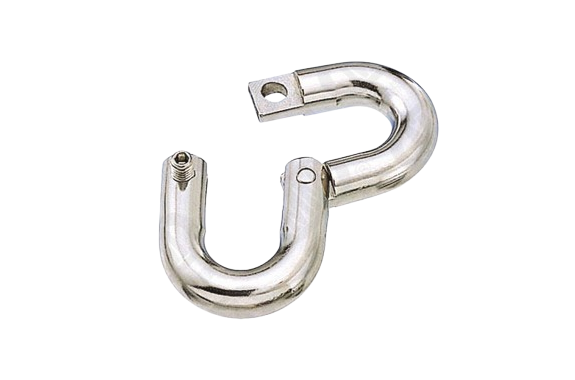

Mizumoto JJM Series Screwed J-Joint
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: JJM Series
Features
- The wide opening part expands its uses.
- It can be neatly joined in a shape that looks just like a chain.
- You can also reopen it with a hex wrench.
- As a connecting bracket such as chains, wires, ropes, etc.
Specifications
| Part No. | D | L | W | H | Wrench Size | Weight (g) | Reference Load Capacity | |
| (kgf) | (kN) | |||||||
| JJM-5 | 5 | 27 | 7 | 21 | 1.5 | 11 | 50 | 0.49 |
| JJM-6 | 6 | 31 | 9 | 24.5 | 1.5 | 19 | 70 | 0.69 |
| JJM-8 | 8 | 38 | 12 | 31 | 2 | 44 | 100 | 0.98 |
| JJM-10 | 10 | 40 | 15 | 35 | 2 | 78 | 200 | 1.96 |

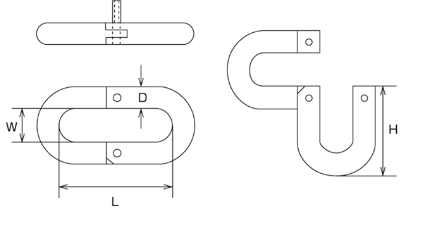

Dimensions (mm)
