Mizumoto Machine Mfg. Co.

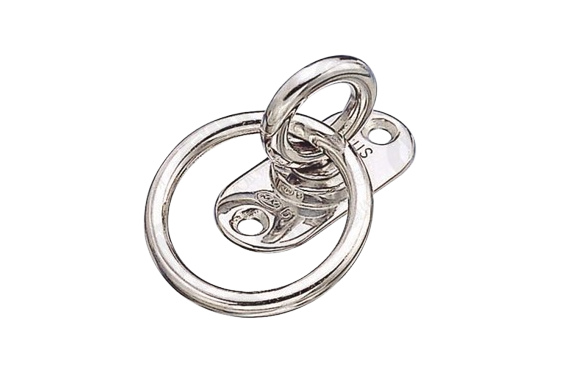

Mizumoto PDSR Series Rotating Pad Eye Round Can
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PDSR Series
Features
- It can be installed on narrow surfaces.
- Please use the screws on the countersunk head.
- It comes with a round can, so it is easy to pass thick ropes through it.
- It is installed on walls, floors, columns, etc., and is used as terminal fittings such as chains.
Specifications
| Model | D | L | A1 | A2 | W | H | T | d | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PDSR-5 | 5 | 30 | 50 | 34 | 20 | 33 | 2.5 | 4.2 | 51 | 15 | 0.15 |
| PDSR-6 | 6 | 40 | 55 | 42.5 | 25 | 38 | 3 | 4.8 | 83 | 20 | 0.20 |
| PDSR-8 | 8 | 50 | 65 | 52.5 | 30 | 44 | 3.5 | 4.8 | 172 | 30 | 0.29 |
*It does not kink and is neat and space-saving.

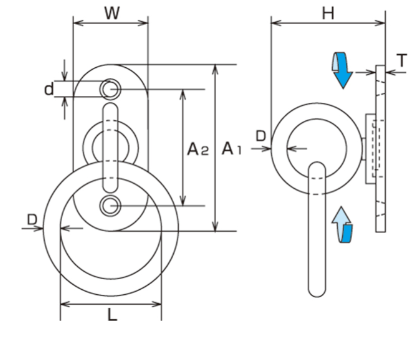

Dimensions (mm)
