Mizumoto Machine Mfg. Co.

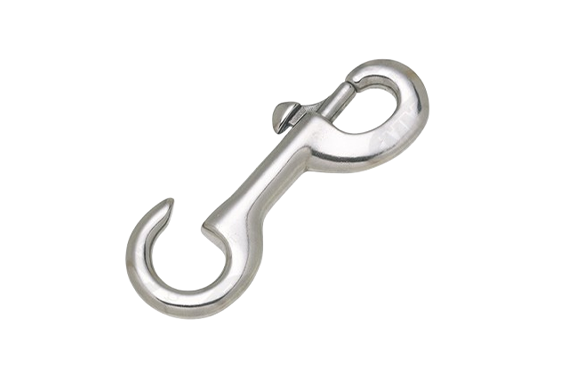

Mizumoto UN Series Hammering Nascan
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: UN Series
Features
- Since it is simply struck with a hammer, there is no need for welding or other work.
- As a connecting bracket for chains and wire ropes.
Specifications
| Product No. | L | W | S | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|
| UN-0 | 64 | 17 | 6 | 4 | 24 | 10 | 0.10 |
| UN-1 | 79 | 20 | 7 | 5 | 36 | 15 | 0.15 |
| UN-2 | 88 | 24 | 8 | 7 | 53 | 25 | 0.25 |

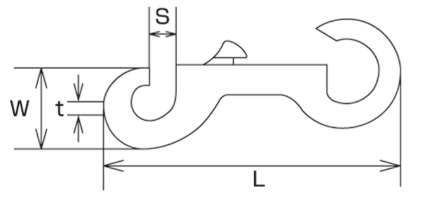

Dimensions (mm)
