Multi Measuring Instruments Co.

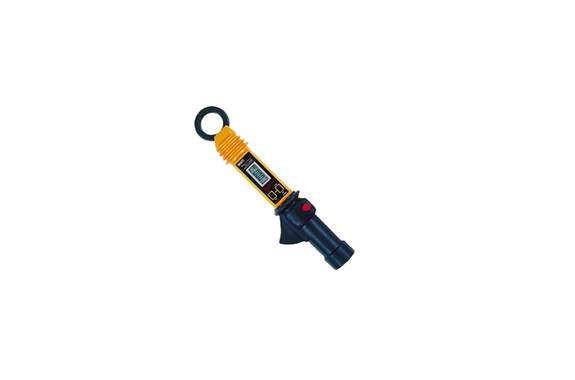

Multi HCL-3000 High and Low Pressure Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HCL-3000
Features
- Can be used for voltages ranging from 80V to 7000V
- Lever structure for easy one-handed operation
- Wide measurement range from 1mA to 200A
Specifications
| Measuring range | AC 2000mA/20A/200A |
|---|---|
| AC current accuracy | ±2.0％rdg±5dgt |
| CT Inner Diameter | φ33mm |
| Minimum resolution | 1mA |
| Other features | Data Hold |
| Operating Circuit Voltage | AC 80～7000V |
| power | AA manganese batteries×2 |
| Dimensions and weight | W54×H311×D42mm approx. 240g |
| accessory | Batteries, carrying cases |
