Multi Measuring Instruments Co.

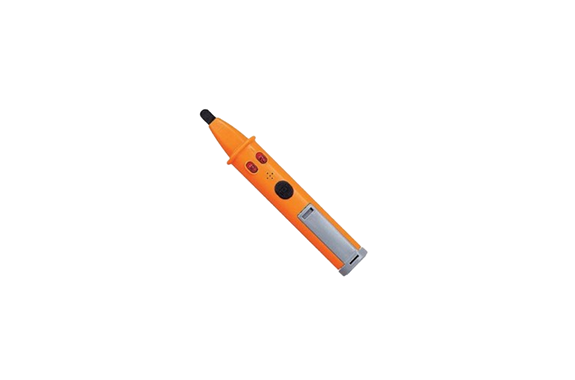

Multi LV-1 Electrodetector with Electric Shock Check Function
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: LV-1
Features
・Conductive rubber used
for the detection part ・Current inspection can be done from the top of the jacket
・Equipped with anti-slip to enhance safety
Specifications
| Operating Circuit Voltage | Coated wire: AC 50~600V Bare terminal: AC 0~300V |
|---|---|
| Operating starting voltage | motion sensitivityvariable |
| Insulation deterioration judgment value | The L-lamp lights up when the current flowing through the human body is more than 10 μA |
| Action Representation | Luminescence: Both electrodetection and electric shock lamps emit red intermittent light Pronunciation: Intermittent ringing |
| power | Button Battery LR-44×2 |
| Dimensions and Weight | W20×H129×D19.5mm Approx. 30g |
| accessory | Battery, Alligator Clip (for grounding) |
