Musashi Engineering

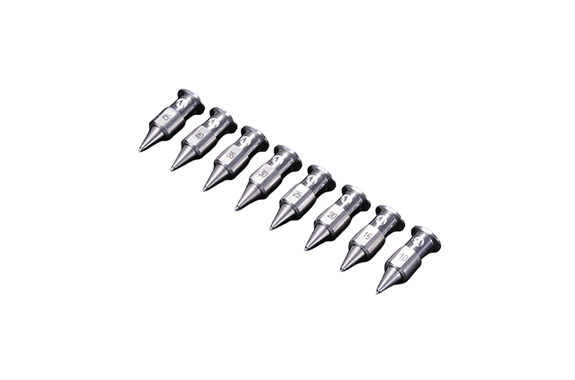

Musashi Precision Solid Nozzle
Manufacturer: Musashi Engineering, Inc.
Features
・The integrated structure eliminates the need to tighten the nozzle to the needle base.
・The tapered shape provides outstanding flow characteristics.
・The ultra-thin nozzle allows for highly accurate, minute, and stable discharge.
Specifications
| Inner diameter (mm) | Tip outer diameter (mm) | Luer-lock specification | Quantity |
|---|---|---|---|
| Model | |||
| 0.60 | 0.70 | SHN-0.6N | 1 piece / 1 pack |
| 0.50 | 0.60 | SHN-0.5N | |
| 0.45 | 0.55 | SHN-0.45N | |
| 0.40 | 0.50 | SHN-0.4N | |
| 0.35 | 0.45 | SHN-0.35N | |
| 0.30 | 0.40 | SHN-0.3N | |
| 0.25 | 0.35 | SHN-0.25N | |
| 0.20 | 0.30 | SHN-0.2N | |
| 0.15 | 0.25 | SHN-0.15N | |
| 0.10 | 0.20 | SHN-0.1N | |
