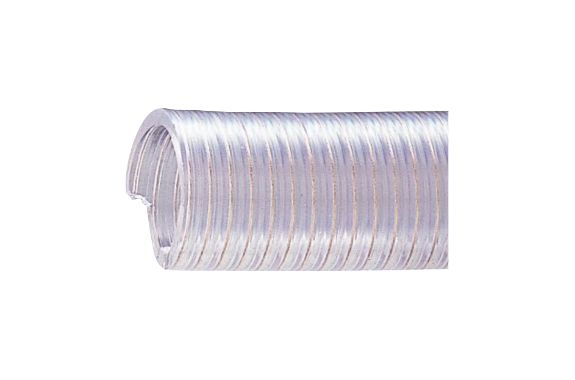

Nagase RooTac TOTAKU Anti-Static Hoses And Ducts SD-CE
Manufacturer: Nagase RooTAC Industries, Inc.
Model: SD-CE
Feature
- Equipped with a built-in copper grounding wire for enhanced static electricity prevention.
- Transparent design allows for easy visual confirmation of transported materials.
- Ideal for transporting resin pellets.
- Suitable for transporting powders and granules (non-food items).

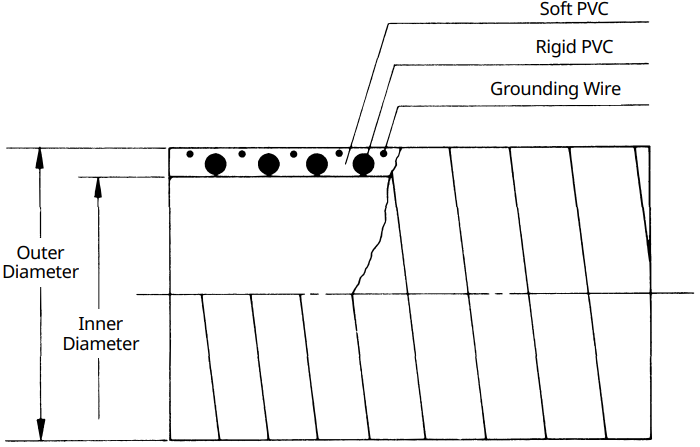

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | lbs/ft | g/m | feet | m | psi | MPa | inch | mm |
| 1 | 25 | 1.00 | 25.4 | 1.33 | 33.7 | 0.38 | 565 | 164 | 50 | 72.52 | 0.50 | 9.45 | 240 |
| 1.25 | 32 | 1.26 | 32.0 | 1.65 | 41.8 | 0.49 | 735 | 164 | 50 | 65.27 | 0.45 | 13.39 | 340 |
| 1.5 | 38 | 1.50 | 38.0 | 1.89 | 48.0 | 0.58 | 870 | 164 | 50 | 58.02 | 0.40 | 13.78 | 350 |
| 2 | 50 | 2.00 | 50.8 | 2.50 | 63.5 | 0.98 | 1455 | 164 | 50 | 58.02 | 0.40 | 19.69 | 500 |
| 2.5 | 65 | 2.50 | 63.5 | 3.02 | 76.8 | 1.28 | 1905 | 65/164 | 20/50 | 58.02 | 0.40 | 23.62 | 600 |
| 3* | 75 | 3.00 | 76.2 | 3.54 | 89.8 | 1.52 | 2260 | 65/164 | 20/50 | 58.02 | 0.40 | 30.51 | 775 |
| 3.5* | 90 | 3.50 | 88.9 | 4.05 | 102.8 | 1.82 | 2710 | 65 | 20 | 43.51 | 0.30 | 41.93 | 1065 |
| 4* | 100 | 4.00 | 101.6 | 4.65 | 118.0 | 2.43 | 3620 | 65 | 20 | 43.51 | 0.30 | 45.28 | 1150 |
| 5 | 125 | 5.00 | 127.0 | 5.63 | 143.0 | 2.91 | 4330 | 65 | 20 | 36.26 | 0.25 | 62.99 | 1600 |
| 6 | 150 | 6.00 | 152.4 | 6.73 | 171.0 | 3.95 | 5880 | 65 | 20 | 29.01 | 0.20 | 73.82 | 1875 |
| 8 | 200 | 8.00 | 203.2 | 8.92 | 226.5 | 6.69 | 9960 | 32 | 10 | 29.01 | 0.20 | 118.11 | 3000 |
