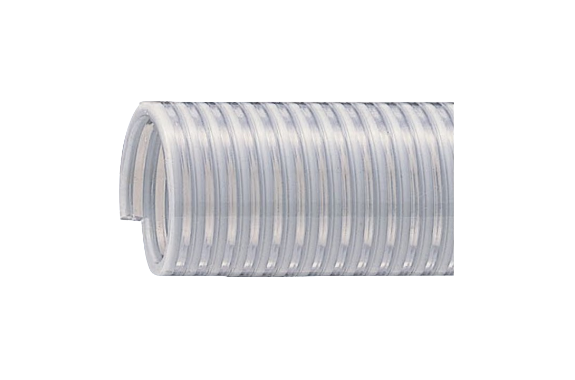

Nagase RooTac TOTAKU Food-Grade Hoses SD-HF
Manufacturer: Nagase RooTAC Industries, Inc.
Model: SD-HF
Feature
- This is a heat-resistant version of SD-F.
- Excellent heat resistance with a maximum operating temperature of 176°F (80°C).
- Suitable for use with oils and fatty foods.

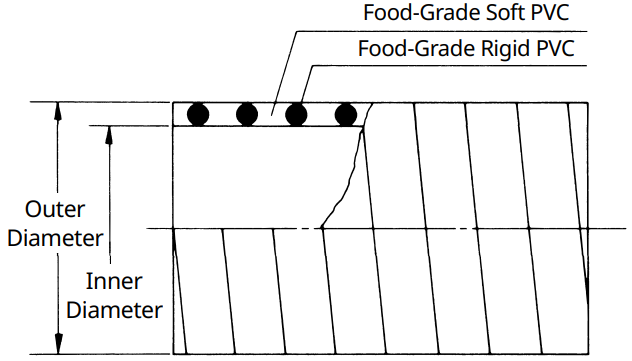

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | lbs/ft | g/m | feet | m | psi | MPa | inch | mm |
| 1 | 25 | 1.00 | 25.4 | 1.23 | 31.2 | 0.25 | 370 | 164 | 50 | 29.01 | 0.20 | 13.78 | 350 |
| 1.25 | 32 | 1.26 | 32.0 | 1.54 | 39.2 | 0.35 | 525 | 164 | 50 | 29.01 | 0.20 | 19.69 | 500 |
| 1.5 | 38 | 1.50 | 38.0 | 1.81 | 46.0 | 0.48 | 715 | 164 | 50 | 29.01 | 0.20 | 23.62 | 600 |
| 2 | 50 | 2.00 | 50.8 | 2.40 | 61.0 | 0.80 | 1190 | 164 | 50 | 29.01 | 0.20 | 29.53 | 750 |
| 2.5 | 65 | 2.50 | 63.5 | 2.94 | 74.8 | 1.11 | 1650 | 65/164 | 20/50 | 29.01 | 0.20 | 49.21 | 1250 |
| 3 | 75 | 3.00 | 76.2 | 3.46 | 88.0 | 1.36 | 2020 | 65/164 | 20/50 | 29.01 | 0.20 | 66.93 | 1700 |
