Nagase RooTAC (TOTAKU)

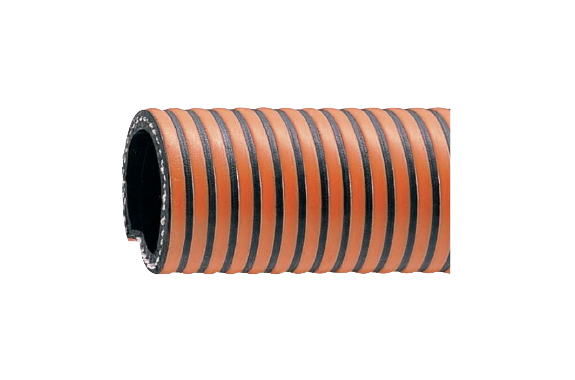

Nagase RooTac TOTAKU Line Power-ABRW Mortar Hoses
Manufacturer: Nagase RooTAC Industries, Inc.
Model: Line Power-ABRW
Feature
- The inner surface is made of rubber, providing superior pressure resistance and durability compared to LINE POWER-CV.
- Intermediate and terminal hose for mortar pumping.
- Suitable for transporting highly viscous materials and use on steep inclines.

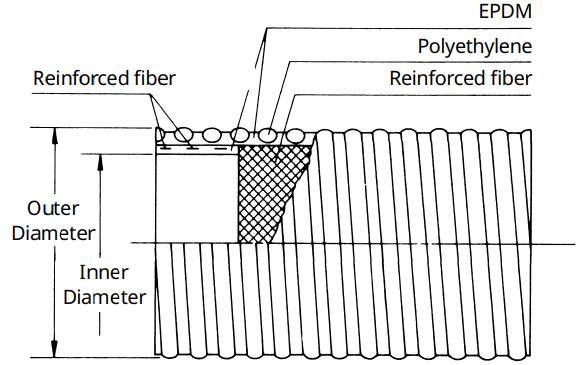

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | lbs/ft | g/m | ft | m | psi | MPa | inch | mm |
| 1.5 | 40 | 1.54 | 39.0 | 2.19 | 55.7 | 0.91 | 1355 | 65 | 20 | 217.56 | 1.50 | 25.59 | 650 |
| 2 | 50 | 1.99 | 50.5 | 2.60 | 66.0 | 1.04 | 1555 | 65 | 20 | 217.56 | 1.50 | 35.43 | 900 |
