Nagase RooTAC (TOTAKU)

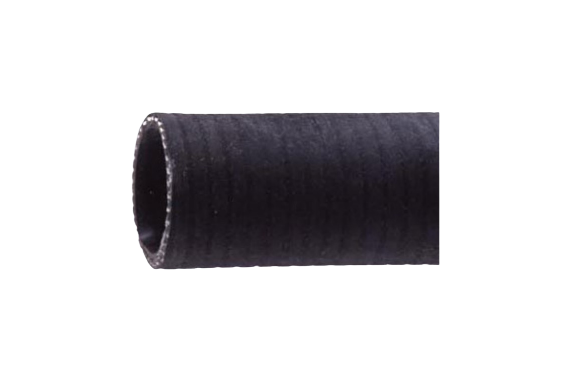

Nagase RooTac TOTAKU Line Power-OT Oil-Resistant Hoses
Manufacturer: Nagase RooTAC Industries, Inc.
Model: Line Power-OT
Feature
- Offers the highest pressure resistance among oil-resistant hoses, with an allowable pressure of 217.5 psi (1.50 MPa).
- Provides anti-static protection with conductive oil-resistant rubber and a steel wire.

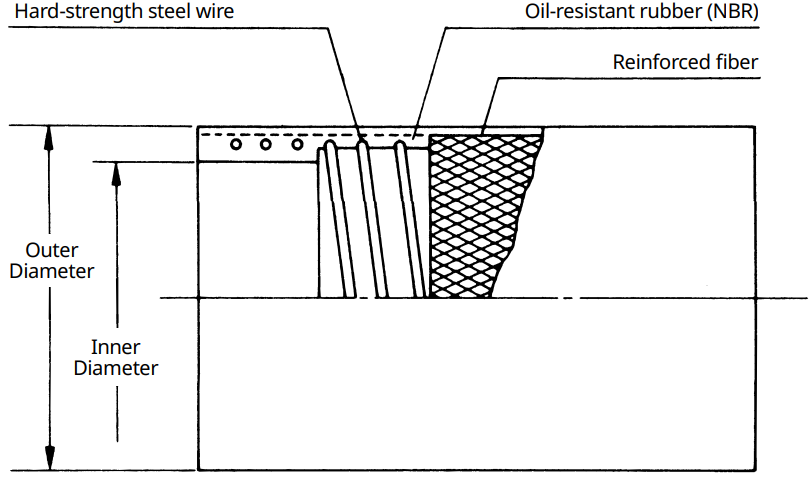

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) |
|---|---|---|---|---|---|---|
| 1.5 inch / 38 mm | 1.52 inch / 38.5 mm | 2.02 inch / 51.3 mm | 0.93 lbs/ft / 1390 g/m | 65/164 ft / 20/50 m | 217.56 psi / 1.50 MPa | 19.69 inch / 500 mm |
| 2 inch / 50 mm | 2.00 inch / 50.8 mm | 2.52 inch / 64.0 mm | 1.23 lbs/ft / 1835 g/m | 65/164 ft / 20/50 m | 217.56 psi / 1.50 MPa | 19.69 inch / 500 mm |
| 2.5 inch / 65 mm | 2.50 inch / 63.5 mm | 3.04 inch / 77.1 mm | 1.70 lbs/ft / 2530 g/m | 65/164 ft / 20/50 m | 217.56 psi / 1.50 MPa | 24.61 inch / 625 mm |
| 3 inch / 75 mm | 3.01 inch / 76.5 mm | 3.62 inch / 92.0 mm | 2.30 lbs/ft / 3420 g/m | 65/164 ft / 20/50 m | 217.56 psi / 1.50 MPa | 31.50 inch / 800 mm |
| 4 inch / 100 mm | 4.00 inch / 101.6 mm | 4.69 inch / 119.0 mm | 3.47 lbs/ft / 5170 g/m | 65 ft / 20 m | 217.56 psi / 1.50 MPa | 56.10 inch / 1425 mm |
