Nagase RooTAC (TOTAKU)

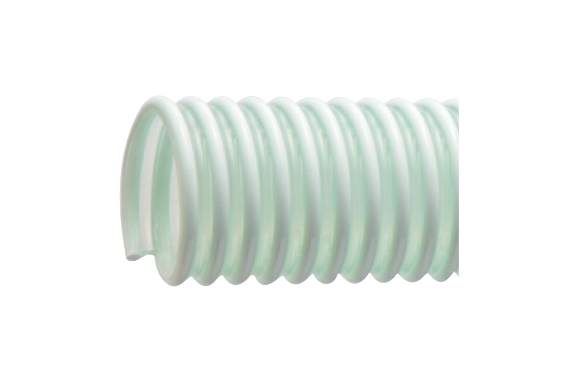

Nagase RooTac TOTAKU FLUORO-A
Manufacturer: Nagase RooTAC Industries, Inc.
Model: FLUORO-A
Feature
- Outstanding resistance to chemicals due to the low reactivity of PTFE resin.
- Fluids have low adhesion to the surface, which provides excellent water-repellent properties for effortless cleaning.
- Designed for safe and easy connections.
- Low leaching minimizes liquid alteration, making it ideal for transporting chemicals.
- Lightweight, constructed entirely from resin.

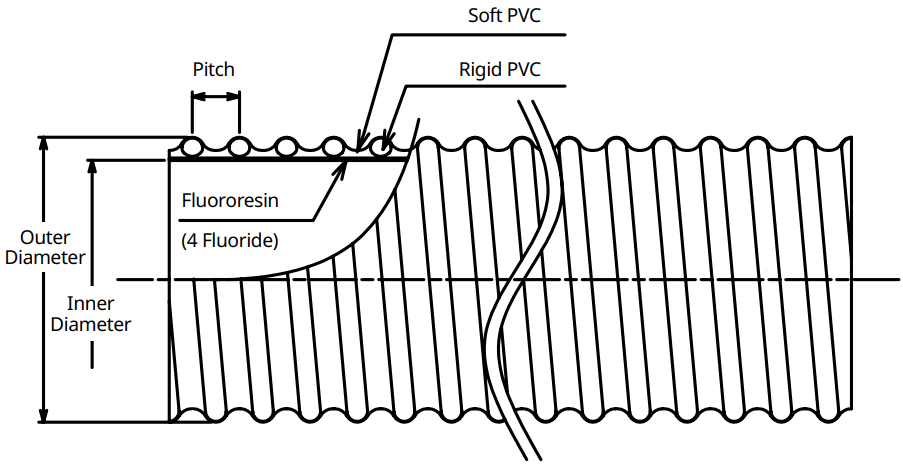

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Pitch | Reference Weight | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | mm | lbs/ft | g/m | psi | MPa | inch | mm |
| 2 | 50 | 2.00 | 50.8 | 2.39 | 60.6 | 0.39 | 10.0 | 0.52 (0.53)* | 780 (785)* | 36.26 | 0.25 | 11.81 | 300 |
