Nagase RooTAC (TOTAKU)

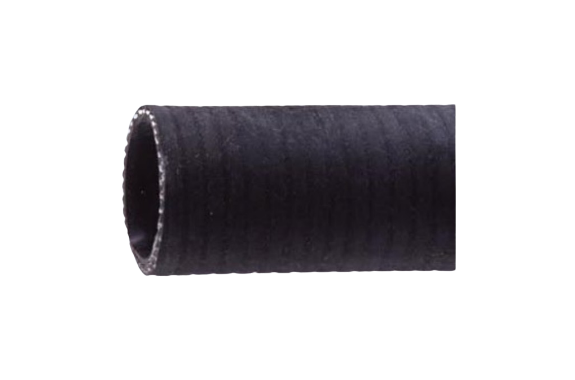

Nagase RooTac TOTAKU Line Power-WA Pressure Abrasion Resistant Hose
Manufacturer: Nagase RooTAC Industries, Inc.
Model: Line Power-WA
Feature
- With an allowable pressure of 218 psi (1.50 MPa) at normal temperature, this hose offers the highest pressure resistance among pressure- and abrasion-resistant hoses.
- Suitable for general water supply, cooling water, and wastewater.
- Ideal for water supply and discharge in general factories, civil engineering and construction sites, and shipbuilding facilities.

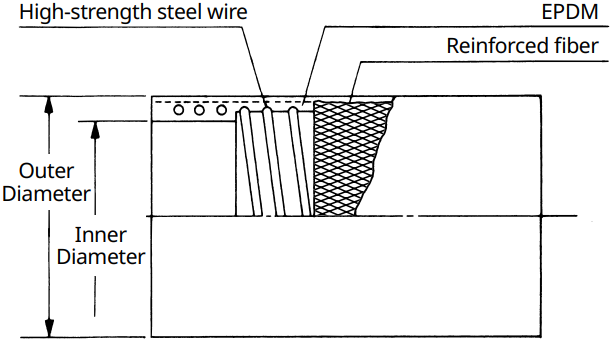

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | lbs/ft | g/m | feet | m | psi | MPa | inch | mm |
| 1.5 | 38 | 1.52 | 38.5 | 2.07 | 52.5 | 0.93 | 1380 | 65/164 | 20/50 | 217.56 | 1.50 | 19.69 | 500 |
| 2 | 50 | 2.00 | 50.8 | 2.61 | 66.2 | 1.34 | 1990 | 65/164 | 20/50 | 217.56 | 1.50 | 19.69 | 500 |
| 2.5 | 65 | 2.50 | 63.5 | 3.11 | 78.9 | 1.74 | 2595 | 65/164 | 20/50 | 217.56 | 1.50 | 24.61 | 625 |
| 3 | 75 | 3.01 | 76.5 | 3.70 | 93.9 | 2.40 | 3575 | 65/164 | 20/50 | 217.56 | 1.50 | 31.50 | 800 |
| 4 | 100 | 4.00 | 101.6 | 4.76 | 121.0 | 3.59 | 5340 | 65 | 20 | 217.56 | 1.50 | 56.10 | 1425 |
