Nansin Co., Ltd.

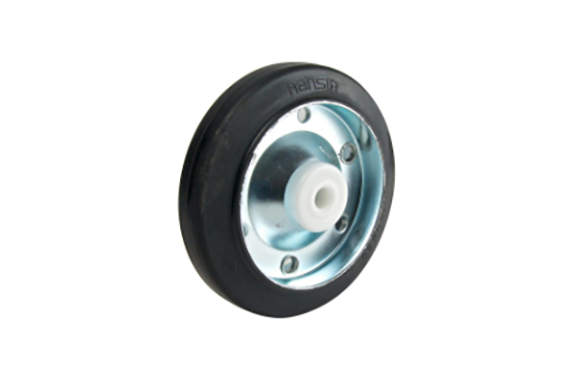

Nansin STC-125 CNC SW-4 Caster
Manufacturer: Nansin Co., Ltd.:
Model: STC-125 CNC SW-4
Illustration
| Product Name | STC-125 CNC SW-4 |
|---|---|
| Wheel Type | Rubber |
| Stopper Type | SW-4 |
| Wheel Diameter D (mm) | 125 |
| Allowable Load (daN) | 150 |
| Starting Force (daN) | 18 |
| Turning Starting Force (daN) | 60.75 |
| Wheel Width W (mm) | 38 |
| Mounting Height H (mm) | 165 |
| Mounting Pitch A × B (A’ × B’) (mm) | 80 × 80 (75 × 75) |
| Plate Size X × Y (mm) | 102 × 102 |
| Mounting Hole Diameter P (mm) | 11 |
| Eccentricity E (mm) | 35 |
| Turning Radius R (mm) | (R118) |
