Nansin Co., Ltd.

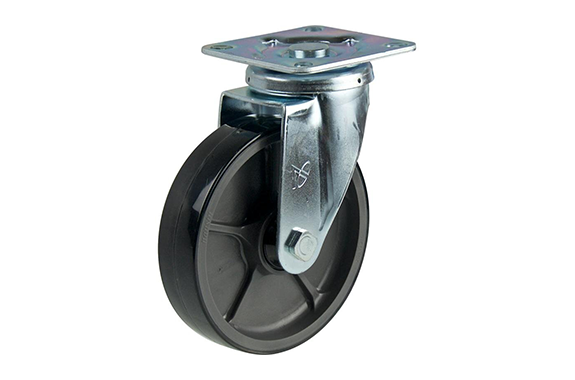

Nansin STC-150 GNU Caster
Manufacturer: Nansin Co., Ltd.:
Model: STC-150 GNU
Model: STC-150 GNU
Features
| Feature | Specification |
| Product Name | STC-150 GNU |

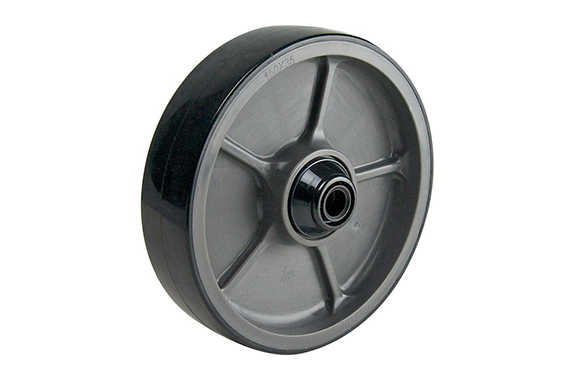

| Wheel type | Urethane (contains B) |
| Wheel diameter (D) | 150 mm |
| Permissible load | 160 daN |
| Starting force | 7.2 daN |
| Turning starting force | 38.4 daN |
| Wheel width (W) | 35 mm |
| Mounting height (H) | 190 mm |
| Mounting pitch (A×B(A’×B’)) | 80 × 80 (75 × 75) mm |
| Plate size (X×Y) | 102 × 102 mm |
| Mounting hole diameter (P) | 11 mm |
| Eccentricity (E) | 40 mm |
| Turning radius (R) | 118 mm |
