Nansin Co., Ltd.

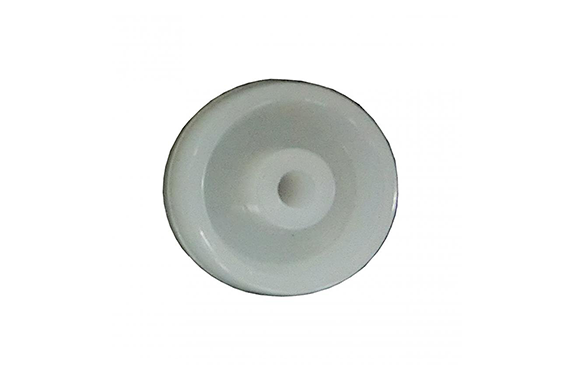

Nansin STC-32NM Caster
STC-Manufacturer: Nansin Co., Ltd.:
Model: 32NM
Model: 32NM
Features
| Feature | Specification |
| Product Name | STC-32NM |
| Wheel type | Nylon/white |
| Wheel diameter (D) | 32 mm |
| Permissible load | 18 daN |
| Starting force | 1.62 daN |
| Turning starting force | 5.4 daN |
| Wheel width (W) | 14 mm |
| Mounting height (H) | 42 mm |
| Mounting pitch (A×B) | 30 × 24 mm |
| Plate size (X×Y) | 38 × 32 mm |
| Mounting hole diameter (P) | 4.2 mm |
| Eccentricity (E) | 11 mm |
| Turning radius (R) | 29 mm |
