Nansin Co., Ltd.

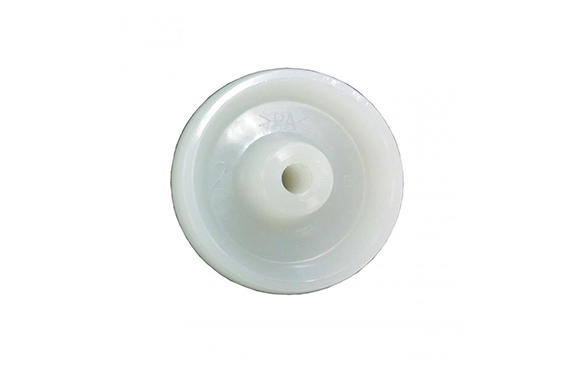

Nansin STC-65NM Caster
Manufacturer: Nansin Co., Ltd.:
Model: STC-65NM
Model: STC-65NM
Features
| Feature | Specification |
| Product Name | STC-65NM |
| Wheel type | Nylon/white |
| Wheel diameter (D) | 65 mm |
| Permissible load | 70 daN |
| Starting force | 7.35 daN |
| Turning starting force | 14.7 daN |
| Wheel width (W) | 25 mm |
| Mounting height (H) | 85 mm |
| Mounting pitch (A×B(A’×B’)) | 55 × 42 (54 × 44) mm |
| Plate size (X×Y) | 70 × 58 mm |
| Mounting hole diameter (P) | 8.8 mm |
| Eccentricity (E) | 25 mm |
| Turning radius (R) | 60 mm |
