NIC AUTOTEC
NIC Autotec AFF-60120 Bracket Frame
Manufacturer: NIC Autotec, Inc.
Model: AFF-60120

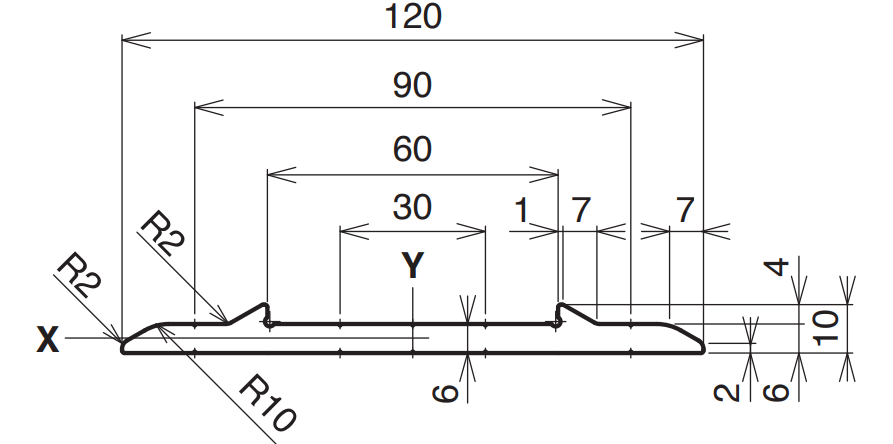

Dimensions
Specifications
| Stock Length | Page length * 1 | Material | Tensile Fitness |
|---|---|---|---|
| 6,000 mm | 15–3,000 mm | A6005CS-T5 (A6N01S-T5) | 245 N/mm² |
| Cross-sectional Area | Mass | Second Moment of Area | |
| 723.2 mm² | 1.953 kg/m | Ix 0.28 × 10⁴ mm⁴ Iy 80.2 × 10⁴ mm⁴ | |
