NIC AUTOTEC

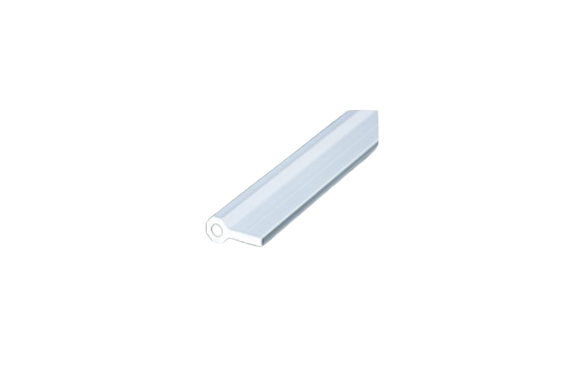

NIC Autotec AFH-1435 Special Frame
Manufacturer: NIC Autotec, Inc.
Model: AFH-1435
Specification
| Stock dimensions | 6000mm |
|---|---|
| Sales dimensions | 15–3000mm |
| cutting tolerance | ±0.3mm (≤2m) |
| Material | A6N01S–T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating * |
| Tensile strength | 245 N/mm² |
| cross-sectional area | 239mm² |
| mass | 0.645 kg/m |
| Second moment of area | Ix 0.23 × 10⁴ mm⁴ Iy 2.39 × 10⁴ mm⁴ |

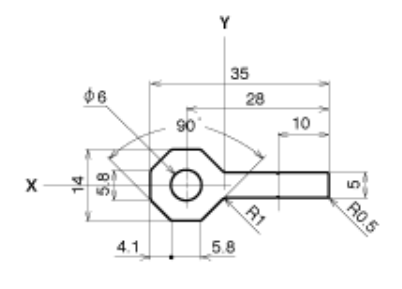

Dimension
