NIC Autotec AFS-1590-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-1590-6

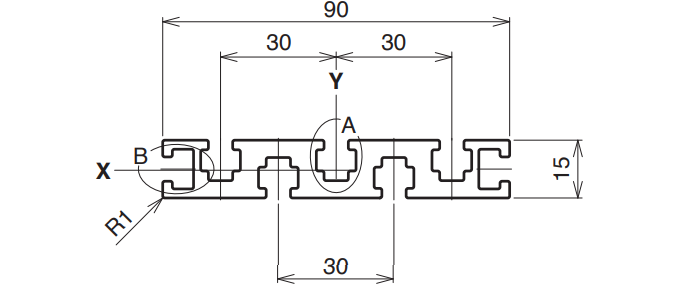

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 763.6 mm² | 2.062 kg/m | Ix 1.85 × 10⁴ mm⁴ Iy 46.8 × 10⁴ mm⁴ |
