NIC AUTOTEC

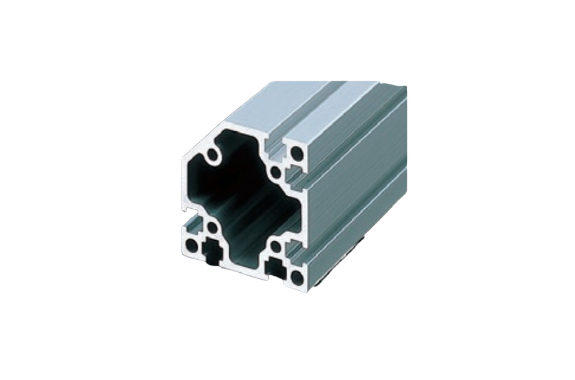

NIC Autotec AFSC-6060-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSC-6060-6

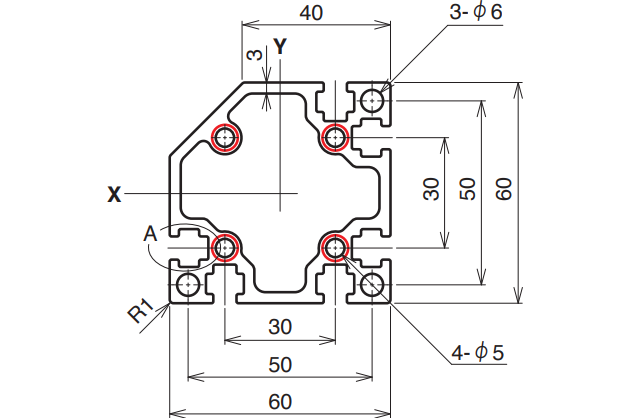

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 225 N/mm² | 1021.0 mm² | 2.757 kg/m | Ix 41.1 × 10⁴ mm⁴ Iy 41.1 × 10⁴ mm⁴ |
