NIC AUTOTEC

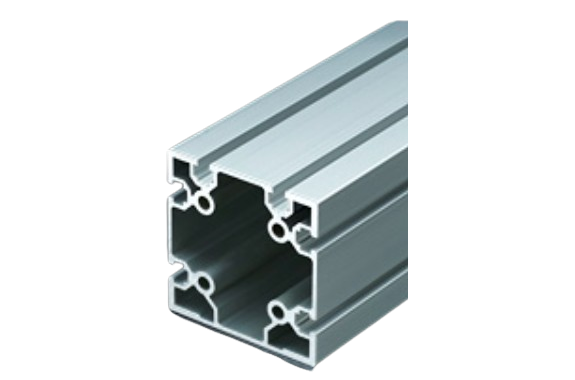

Nic Autotec AFSF-100100C-8 High Rigidity Series
Manufacturer: NIC Autotec, Inc.
Model: AFSF-100100C-8
Specifications
| Stock dimensions | 6000 mm |
| Sales dimensions | 15–4000 mm |
| Cutting tolerance | ±0.3 mm (≤2 m) |
| Material | A6005CS–T5 (A6N01) |
| Surface treatment | Anodized finish (≥5 μm) with clear electrodeposition coating * |
| Tensile strength | 245 N/mm² |
| Cross-sectional area | 2116.57 mm² |
| Mass | 5.715 kg/m |
| Second moment of area | Ix 269.414 × 10⁴ mm⁴ Iy 270.136 × 10⁴ mm⁴ |
| Compatible end caps | ECP–100100–10, ECP–100100–10–GY |
