NIC AUTOTEC
NIC Autotec AFX-2020-4 Special Frame
Manufacturer: NIC Autotec, Inc.
Model: AFX-2020-4
Specification
| Stock dimensions | 6000mm |
|---|---|
| Sales dimensions | 15–3000mm |
| Cutting tolerance | ±0.3mm (<2m) |
| Material | A6063S-T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating * |
| Tensile strength | 185 N/mm² |
| Cross-sectional area | 101.4 mm² |
| Mass | 0.274 kg/m |
| Second moment of area | Ix 0.47 × 10⁴ mm⁴ Iy 0.38 × 10⁴ mm⁴ |

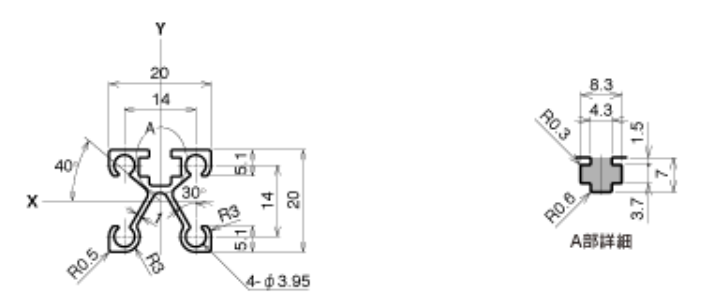

Dimension
