NIC AUTOTEC

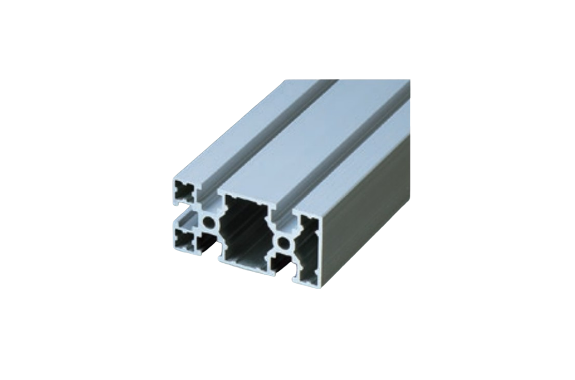

NIC Autotec AFSN-3060L-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSN-3060L-6

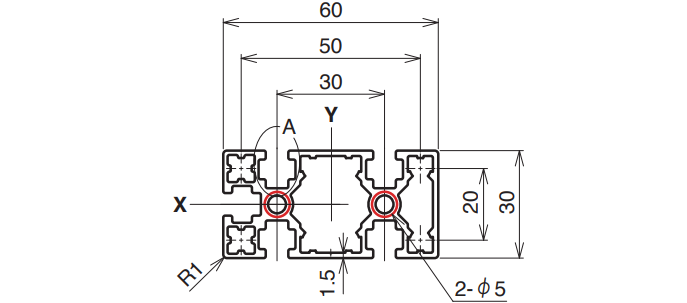

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 225 N/mm² | 533.6 mm² | 1.441 kg/m | Ix 4.97 × 10⁴ mm⁴ Iy 19.5 × 10⁴ mm⁴ |
