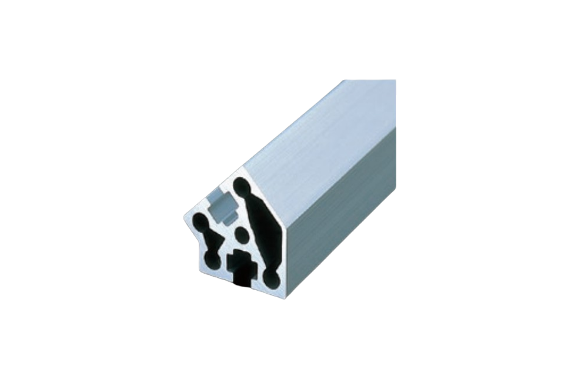

NIC Autotec AFSV-4045-8 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSV-4045-8

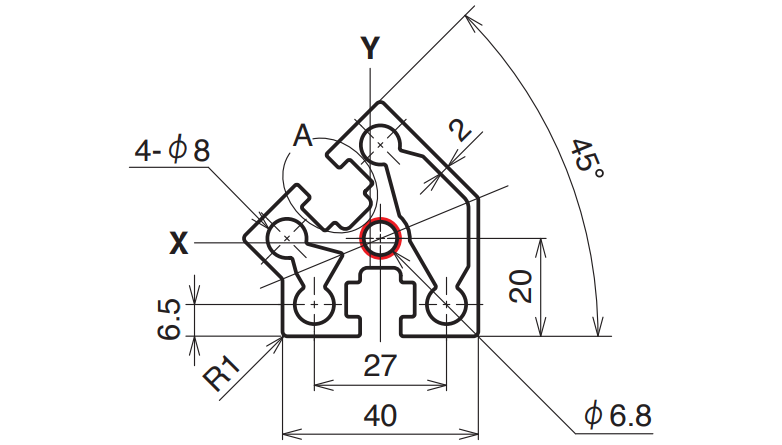

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 185 N/mm² | 696.5 mm² | 1.881 kg/m | Ix 11.0 × 10⁴ mm⁴ Iy 10.7 × 10⁴ mm⁴ |
