NIC AUTOTEC

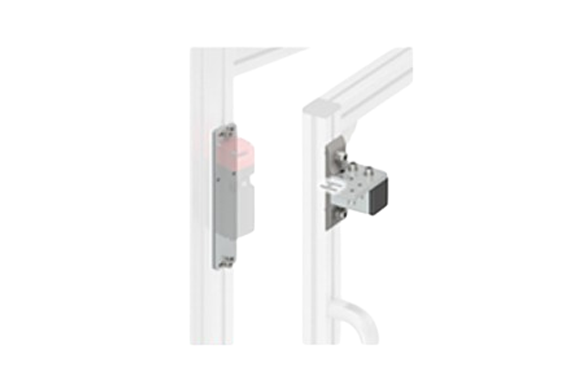

NIC Autotec D4NS-BD Safety Series
Manufacturer: NIC Autotec, Inc.
Model: D4NS-BD
Specifications
| Material | ① A6063S–T5 ② A6063S–T5 ABS |
|---|---|
| Mass | ① 58g ② 120g |
| Included Parts | ① CSW–04–15 (2 pieces), NSM–06–4 (2 pieces), NH–06–GR (2 pieces) ② CSW–06–18 (2 pieces), NSM–06–6 (2 pieces), NH–06–GR (2 pieces) |
| Compatible Switches (sold separately) | Omron [D4NS] Door Switch [D4DS–K1] Operation Key |
| Recommended Fastening Components | (a) Hex socket head bolt M4 × 25 (2 pieces) (b) Hex socket head bolt M4 × 8 (2 pieces) |

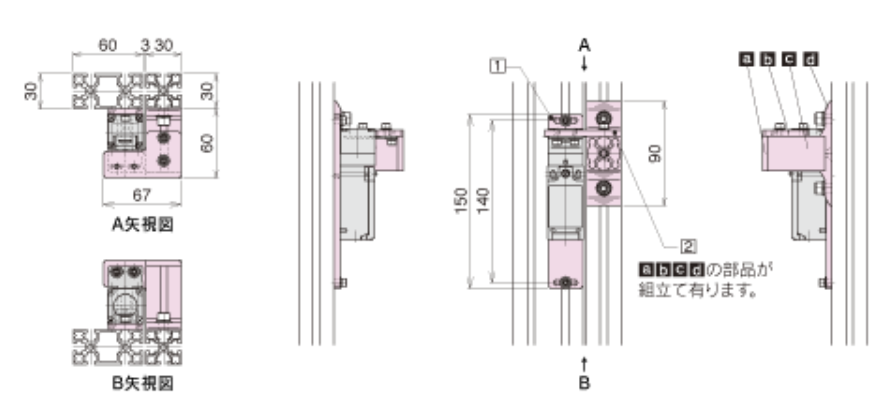

Dimension
