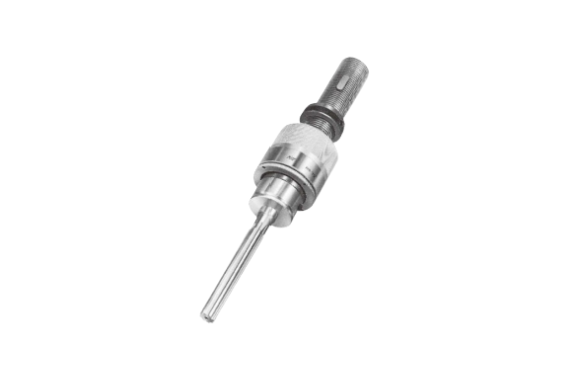

NT Tool Corporation FH-ST Series Floating Holder
Manufacturer: NT TOOL CORPORATION
Model: FH-ST Series
Feature
- For high precision reaming with special purpose machines and transfer lines.
Specifications

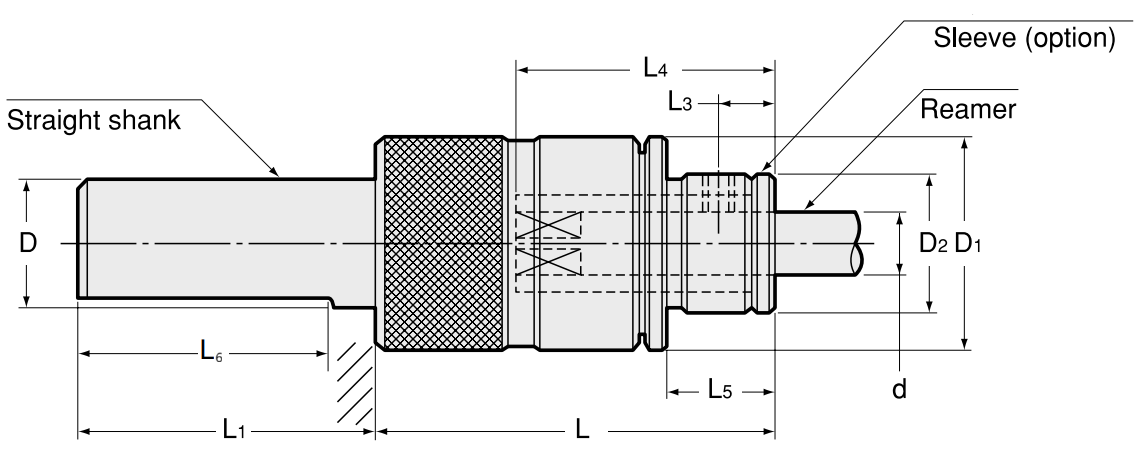

| Model | d Reamer shank | Sleeve size | Float | D | D1 | L | L1 | L3 | L5 | L6 | D2 | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Radial | Angular | ||||||||||||
| FH0 -ST15.875 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 15.875 | 28 | 50 | 50 | 7 | 15 | 40 | 19.5 | 0.2 |
| FH0 -ST16 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 16 | 28 | 50 | 50 | 7 | 15 | 40 | 19.5 | 0.2 |
| FH0 -ST19.05 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 19.05 | 28 | 50 | 50 | 7 | 15 | 40 | 19.5 | 0.2 |
| FH0 -ST20 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 20 | 28 | 50 | 50 | 7 | 15 | 40 | 19.5 | 0.3 |
| FH1 -ST15.875 | 4.00 ～ 10.00 | FHS1 | 0 ～ 0.4 | 0 ～ 1° | 15.875 | 36 | 54 | 50 | 8 | 19 | 40 | 23 | 0.3 |
| FH1 -ST16 | 4.00 ～ 10.00 | FHS1 | 0 ～ 0.4 | 0 ～ 1° | 16 | 36 | 54 | 50 | 8 | 19 | 40 | 23 | 0.3 |
