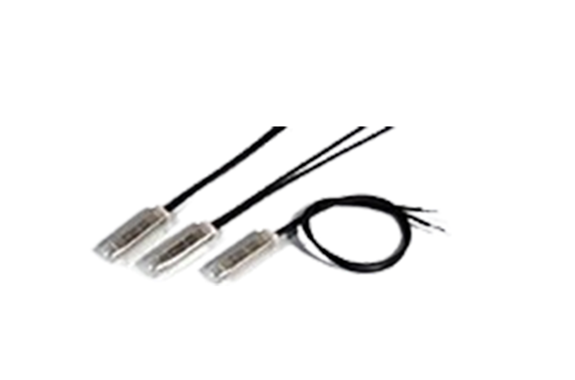

Sakaguchi Bimetallic thermostat: IP105A

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: IP105A

Features

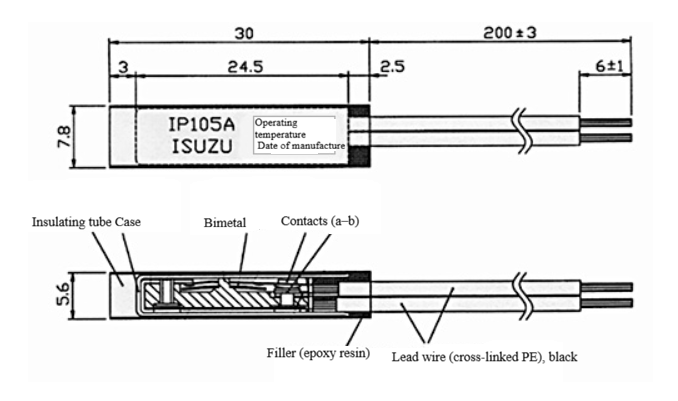

  • It is a thin square rectangle with leads. The body is 30 mm and has a compact design.
  • It has a robust and dustproof type construction.
  • It has a square shape, so it is easy to install.
  • It is a product certified according to the overseas standard C-UL standard.

Specifications

Model numberIP105A195IP105A196IP105A197IP105A208
Electrical ratingAC125V　5A　　AC250V　3A
Contact ActionSnap Action
Operating Temperature (OFF)50±5℃60±5℃100±5℃120℃±6℃
Return Temperature (ON)30°C or higher40°C or higher46°C or higherAbove 60°C
Terminal-to-Terminal Resistance (1A Load)40mΩ or less
Insulation Resistance (DC500V)100MΩ or more
ON-OFF Difference4deg or more6deg or more7deg or higher7deg or more
Withstand voltage (AC500V)1 minute
Product CodeIP105A50IP105A60IP105A100IP105A120
RemarksRoHS compliant and C-UL certified products



Precautions for use (IP105, ICP common)
