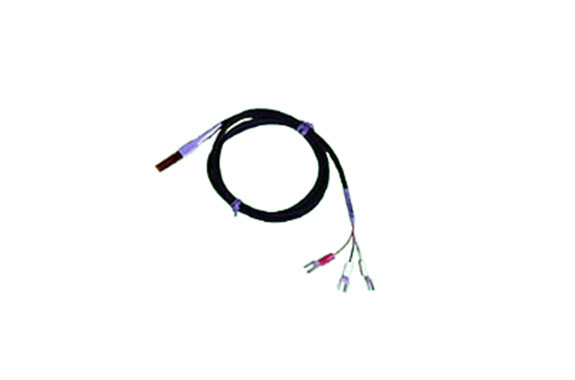

Sakaguchi Film-type thermometric resistors

Manufacturer: Sakaguchi Electric Heaters CO., LTD.

Features

  • It can insert into a narrow gap and measured temperature.

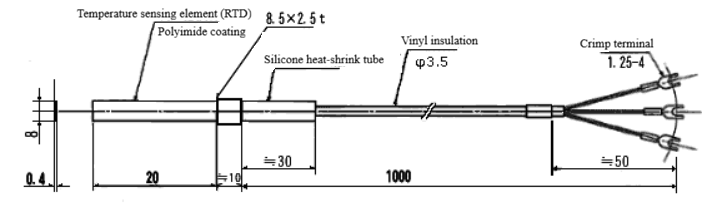

  • The sensor part uses a foil-shaped resistance thermometer and is finished with a thickness of 0.4 mm.
  • The surface of the sensor section insulates with a heat-resistant polyimide film.

Specifications

Model numberNFR-CF4V-0820
MotokoPt100Ω(at0℃)
Specified current2mA
RankClass (Class B) +/- (0.3+0.005t*)
(*Temperature is indicated by the temperature (°C) independent of the +, – signs)
Operating temperature rangeMax 200°C (230°C for short periods)
Insulation resistanceDC100V 10MΩ or more
Conductor3-wire type
Product CodeCF4V0820

REQUEST QUOTATION
