Sakaguchi Electric Heaters CO.

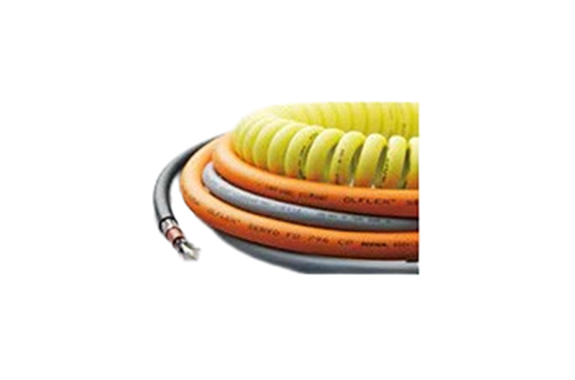

Sakaguchi heat-resistant wire ÖLFLEX® HEAT 180

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Model number | Conductor Configuration* | Finishing Outer Diameter (Approx.) (mm) | Allowable current (20°C) | Allowable current (175°C) | Copper weight kg/km | Weight kg/km |
|---|---|---|---|---|---|---|
| Number of pieces / Cross-sectional area (mm² ) | ||||||
| 0046600 | 2X /0.5 | 7.4 | 9A | 3.69A | 9.8 | 72 |
| 0046601 | 3G /0.5 | 7.8 | 9A | 3.69A | 14.7 | 83 |
| 0046612 | 2X /1.0 | 8.2 | 15A | 6.15A | 19.2 | 93 |
| 0046613 | 3G /1.0 | 8.7 | 15A | 6.15A | 28.8 | 110 |
| 0046618 | 2X /1.5 | 8.8 | 18A | 7.38A | 28.8 | 113 |
| 0046619 | 3G /1.5 | 9.3 | 18A | 7.38A | 43.2 | 135 |
| 0046628 | 2X /2.5 | 9.6 | 26A | 10.66A | 48.0 | 146 |
| 0046629 | 3G /2.5 | 10.2 | 26A | 10.66A | 72.0 | 178 |
