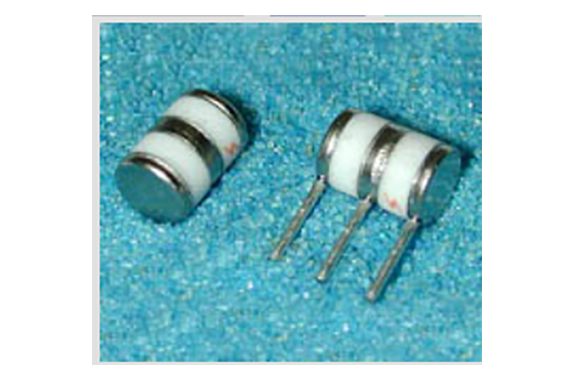

Sankosha 3Y06-Series Gas Discharge Tubes (GDT) – Surge Arresters

Manufacturer: Sankosha., Inc
Model: 3Y06-Series

Features:

  • UL 479B Recognized (File E140906)
  • High Surge Current Rating
  • Non-Radioactive
  • RoHS Compliant (100% Lead-Free)
  • ISO 9001 and ISO 14001 Certified
  • Low Capacitance ≤ 3.0pF(1)
  • Proven Performance

Applications:

  • Cable Telephony Products
  • Modems/Cable Modems
  • Broadband/CATV/Coaxial Protectors
  • xDSL Modems and Peripherals
  • Building Entry/Outside Plant
  • Transient Voltage Surge Suppression
Part
Number
(Model A)		Part
Number
(Model P1)		DC Breakdown Voltage
(L1-E)(L2-E)(1)		Impulse Breakdown Voltage
(L1-E)(L2-E)		Insulation Resistance(2)Capacitance
(1 MHz)		DC Holdover Voltage(3)Impulse Life
(10/1000μs 200A)		Impulse Discharge Current
(8/20μs)		AC Discharge
Current (L1+L2-E)
(50Hz)
100V/s1kV/μs10 Times(4)1 Second
3Y06-90A3Y06-90P190V≤ 850V≥ 10,000 MΩ≤ 3.0pF≤ 52V100 Times5 kA5A, 5 Times
3Y06-230A3Y06-230P1230V≤ 700V≥ 10,000 MΩ≤ 3.0pF≤ 135V100 Times10 kA10A, 5 Times
3Y06-350A3Y06-350P1350V≤ 750V≥ 10,000 MΩ≤ 3.0pF≤ 150V100 Times5 kA5A, 5 Times



Sankosha 3Y06-Series Gas Discharge Tubes (GDT) – Surge Arresters


Notes:
  1. DC Breakdown Voltage Ranges are ą 20%
  2. Insulation Resistance measured at:
    DC 50V for the 3Y06-90
    100V for the 3Y06-230 and 3Y06-350
  3. DC Holdover Voltage measured in accordance with the ITU-T K.12 or the IEEE C62.31-1987 Test Circuit
  4. 5 times each polarity
