SANWA CHURI INDUSTRY CO.

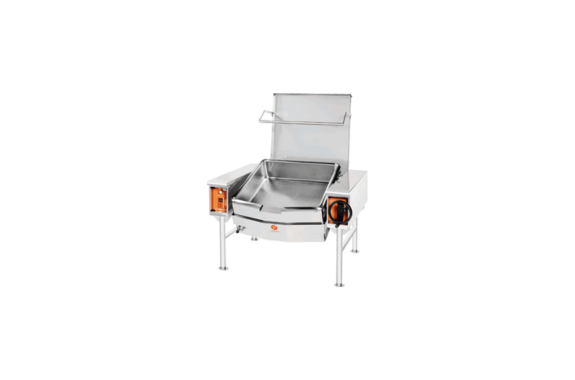

SANWA CHURI BSK Series Braising Pan

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: BSK series
A versatile electric braising pan designed for a wide range of cooking applications, featuring excellent heat distribution for even and consistent cooking.
Feature 01
Equipped with an aluminum-molded electric heater as the heat source.
Feature 02
Features a 12 mm-thick stainless steel-clad cooking vessel bottom.
Feature 03
Equipped with a digital temperature controller for precise temperature adjustment.
- The unit uses a specially molded aluminum electric heater with a wide heating surface and excellent thermal conductivity. In addition, its 12 mm-thick stainless-steel-clad steel pan bottom distributes heat evenly across the entire cooking surface.
- Since the unit operates without an open flame, it produces no combustion gases and generates minimal waste heat. As a result, it helps maintain clean kitchen air and a comfortable working environment.
- Furthermore, the digital temperature controller allows users to adjust the cooking temperature quickly and easily. Therefore, operators can achieve their desired temperature with minimal effort.
- Moreover, the large pan offers an effective cooking area of 700 × 600 mm and a powerful 12 kW heating capacity. Consequently, it can efficiently handle large-scale cooking operations.
Specification
| Model | External dimensions (mm) | Bread dimensions (internal dimensions) (mm) | Power consumption | power supply | Maximum current value | Mass (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| frontage | depth | height | maximum height | front width | depth | depth | |||||
| BSK-12 | 1330 | 1015 | 850 | 1650 | 770 | 715 | 210 | 12.0kW | 3 phase 200V | 35A | 200 |
| BSK-18 | 1680 | 1015 | 850 | 1650 | 1120 | 715 | 210 | 18.0kW | 3 phase 200V | 52A | 220 |
★ Specifications and appearance are subject to change without notice for improvement purposes.
