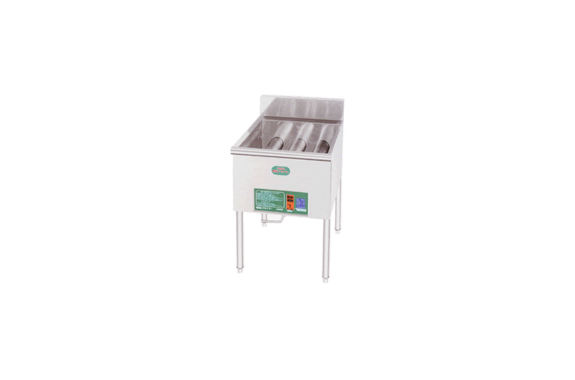

SANWA CHURI NSF Series P-Type IH-Fryer

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: NSF series

A versatile, space-saving, and energy-efficient induction fryer suitable for a wide range of cooking applications. This popular model has received positive feedback from numerous restaurants and food service establishments throughout Japan.

Feature 01
Delicious Frying Results: Produces delicious, evenly fried food.

Feature 02
Comfortable Frying Operation: Provides a more comfortable frying experience.

Feature 03
Improved Cost Efficiency: Helps improve operating economy.

Feature 04
Safe Working Environment: Supports safer working conditions.

Feature 05
Improved Hygiene: Helps maintain a cleaner and more hygienic kitchen environment.

Anyone can maintain the oil temperature at the optimal 180℃.
Quick temperature recovery makes it ideal for large-scale cooking.
Produces minimal oil fumes, keeping the kitchen clean.
Minimal heat exhaust keeps the room fresh at all times.
Saves 50% on oil costs and 20% on fuel consumption.
Low air conditioning costs (including equipment costs).
Unlike gas-powered systems, there is no risk of fire.
Safe design that complies with fire prevention regulations.
Flat control panel can be wiped clean in a single swipe.
New design allows for easy floor mopping.

Specification

Model	External dimensions (mm)			Mass (kg)	power supply	At rated power consumption (oil temperature 180℃)	Appropriate breaker	Required amount of oil (oil temperature 20℃)
Model	width	Oku	high	Mass (kg)	power supply	At rated power consumption (oil temperature 180℃)	Appropriate breaker	Required amount of oil (oil temperature 20℃)
NSF-035P	400	600	800	35	Single-phase 200V	3.9kW inductive load	30A maximum starting current 29A (oil temperature 20℃)	16L
NSF-053P	450	600	800	40	3 phase 200V	5.8kW inductive load	30A maximum starting current 24A (oil temperature 20℃)	22L
NSF-070P	550	600	800	50	3 phase 200V	7.8kW inductive load	30A maximum starting current 30A (oil temperature 20℃)	26L
NSF-110P	600	650	800	70	3 phase 200V	11.0kW inductive load	50A maximum starting current 42A (oil temperature 20℃)	33L
