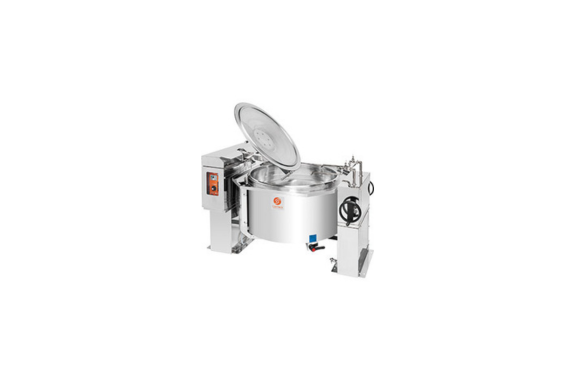

SANWA CHURI CSK Series Cooking Kettle

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: CSK series
A versatile electric tilting kettle designed for a wide range of cooking applications, including simmering, stir-frying, and boiling.
Feature 01
No risk of burns when touching the sides or rim of the kettle.
Feature 02
The hemispherical kettle bottom allows smooth and easy stirring.
Feature 03
Electric operation generates minimal waste heat, ensuring a consistently comfortable kitchen environment.
- The main body uses stainless steel (SUS304), offering excellent hygiene and rust resistance. As a result, it ensures durability and easy maintenance.
- Moreover, the specially molded aluminum heater features a wide heating surface and excellent thermal conductivity. Together with the 12 mm-thick stainless-steel-clad steel pot bottom, it distributes heat evenly across the entire cooking surface.
- Since the unit operates without combustion, it produces no combustion gases and generates minimal exhaust heat. Consequently, the kitchen air remains clean, ensuring a comfortable working environment.
- In addition, the digital display shows both the set temperature and the current temperature, allowing operators to monitor and manage cooking temperatures easily.
- Furthermore, operators can adjust the heat output quickly and easily using a simple control dial, ensuring convenient temperature control.
- For enhanced safety, the system automatically prevents heating whenever the pot tilts. Additionally, the pot’s side temperature remains at approximately 40°C, helping reduce the risk of burns.
- Finally, the folding lid mechanism allows users to open and close the lid easily. Its practical design also simplifies cleaning and maintenance.
Specification
| Model | External dimensions (mm) | Pot dimensions (mm) | Pot capacity | Power consumption | power supply | Maximum current value | Mass (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| frontage | depth | height | maximum height | Inner diameter | depth | ||||||
| CSK-50S | 1190 | 930 | 850 | 1560 | φ500 | 300 | 50L | 10.2kW | 3 phase 200V | 30A | Approximately 190 |
| CSK-80S | 1340 | 930 | 850 | 1740 | φ650 | 300 | 80L | 13.5kW | 3 phase 200V | 39A | Approximately 210 |
| CSK-100S | 1460 | 930 | 850 | 1830 | φ700 | 320 | 100L | 15.3kW | 3 phase 200V | 44A | Approximately 230 |
| CSK-150S | 1570 | 970 | 850 | 1930 | φ800 | 360 | 150L | 21.6kW | 3 phase 200V | 62A | Approximately 270 |
| CSK-200S | 1670 | 1030 | 850 | 2010 | φ900 | 390 | 200L | 27.0kW | 3 phase 200V | 78A | Approximately 305 |
| CSK-300S | 1930 | 1250 | 1000 | 2360 | φ1100 | 450 | 330L | 45.0kW | 3 phase 200V | 130A | Approximately 460 |
| CSK-400S | 2280 | 1450 | 1100 | 2550 | φ1300 | 430 | 450L | 62.1kW | 3 phase 200V | 180A | Approximately 600 |
★ Specifications and appearance are subject to change without notice for improvement purposes.
